GM 19111400, 25028949, 15124630, 15841568, 19256745 Electric Fuel Pump Assembly

GM 19111400, 25028949, 15124630, 15841568, 19256745 Electric Fuel Pump Assembly

GM 19111400, 25028949, 15124630, 15841568, 19256745 Electric Fuel Pump Assembly

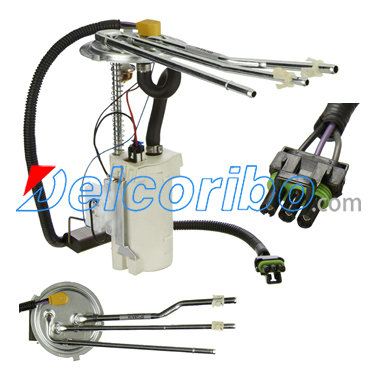

FPM1005 BUICK Electric Fuel Pump Assembly
Description Fuel Pump And Sender Assembly
Gaskets Included Yes
Height (in) 10.5
Max Pressure Range (Psi) 25
Max Free Flow (Gph) 55.5
Resistance Empty (Ohms) 0
Resistance Full (Ohms) 95
Rheostat Range (Ohms) 0-95
Inlet Quantity 1
Inlet Type Quick Connect
Inlet Diameter (IN) 5/16
Outlet Quantity 1
Outlet Type Quick Connect
Outlet Diameter (IN) 3/8
Compatible Fuels Gas
Wiring Harness Included No
Hardware Included Yes
Min Free Flow Rate (Gph) 47.5
Min Pressure Range (Psi) 14.5
Strainer Included Yes
Pin Count 3
Pin Shape Round
Connector Shape Oval
Connector Gender Female
Inline Pump No
In Tank Yes
Negative Ground Yes
Pump Type Turbine
Volts 12 vDC
GM 19111400, 25028949, 15124630, 15841568, 19256745,
ACDELCO FLS1019
SPECTRA PREMIUM SP128A1H
DELPHI HP10030
DORMAN 692261
BUICK ROADMASTER 1992-1993
CHEVROLET CAPRICE 1992-1993
