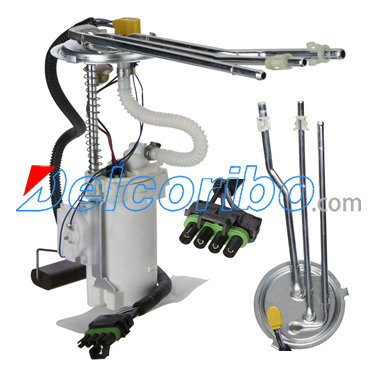

GM 19111402, 25028959, 25117454, 25164429 Electric Fuel Pump Assembly

Description Fuel Pump And Sender Assembly
Gaskets Included Yes
Height (in) 10.5
Max Pressure Range (Psi) 130.5
Max Free Flow (Gph) 58.1
Resistance Empty (Ohms) 0
Resistance Full (Ohms) 95
Rheostat Range (Ohms) 0-95
Inlet Quantity 1
Inlet Type Quick Connect
Inlet Diameter (IN) 5/16
Outlet Quantity 1
Outlet Type Quick Connect
Outlet Diameter (IN) 3/8
Compatible Fuels Gas
Wiring Harness Included No
Hardware Included Yes
Min Free Flow Rate (Gph) 50.2
Min Pressure Range (Psi) 72.5
Strainer Included Yes
Pin Count 4
Pin Shape Round
Connector Shape Oval
Connector Gender Female
Inline Pump No
In Tank Yes
Negative Ground Yes
Pump Type Turbine
Volts 12 vDC

GM 19111402, 25028959, 25117454, 25164429,

ACDELCO FLS1021
SPECTRA PREMIUM SP128C1H
DELPHI HP10024

CADILLAC FLEETWOOD 1994-1996
