GM 19179982, 25029982, 88962475, 19332081, 25029764, 25029996 Electric Fuel Pump Assembly
GM 19179982, 25029982, 88962475, 19332081, 25029764, 25029996 Electric Fuel Pump Assembly

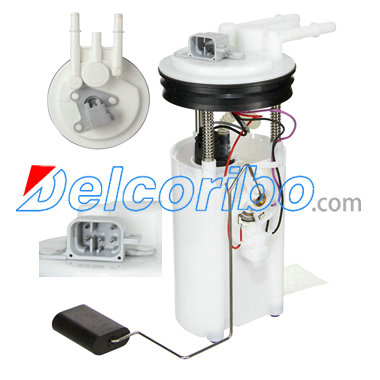

FPM1009 CADILLAC Electric Fuel Pump Assembly
Description Fuel Pump Module Assembly
Gaskets Included Yes
Height (in) 10.3
Max Pressure Range (Psi) 130
Max Free Flow (Gph) 58
Resistance Empty (Ohms) 180
Resistance Full (Ohms) 0
Rheostat Range (Ohms) 180-0
Inlet Quantity 1
Inlet Type Quick Connect
Inlet Diameter (IN) 3/8
Outlet Quantity 1
Outlet Type Quick Connect
Outlet Diameter (IN) 3/8
Compatible Fuels Gas
Wiring Harness Included Yes
Hardware Included Yes
Min Free Flow Rate (Gph) 48
Min Pressure Range (Psi) 72
Strainer Included Yes
Pin Count 5
Pin Shape Flat
Connector Shape Oval
Connector Gender Male
Inline Pump No
In Tank Yes
Negative Ground Yes
Pump Type Turbine
Volts 12 vDC
GM 19179982, 25029982, 88962475, P367M, 19332081, 25029764, 25029996, 25363938,
SPECTRA PREMIUM SP49911M
DELPHI FG0010
DORMAN 2630327
CARTER P74747M
AIRTEX E3913M
ACDELCO MU1786
CADILLAC DEVILLE 1994-1996
CADILLAC ELDORADO 1994-1996
CADILLAC SEVILLE 1994-1996
