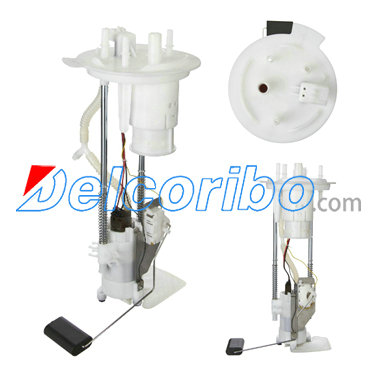

FORD 4L3Z9H307BF, 5L3Z9H307BB, 6L3Z9H307B, 7L3Z9H307B Electric Fuel Pump Assembly

Description: Fuel Pump Module Assembly
Gaskets Included: Yes
Height (in): 14.72
Max Pressure Range (Psi): 130.5
Max Free Flow (Gph): 68
Resistance Empty (Ohms): 15
Resistance Full (Ohms): 160
Rheostat Range (Ohms): 15-160
Inlet Quantity: 1
Inlet Type: Quick Connect
Inlet Diameter (IN): 5/16
Outlet Quantity: 1
Outlet Type: Quick Connect
Outlet Diameter (IN): 3/8
Compatible Fuels: Gas
Wiring Harness Included: No
Hardware Included: Yes
Min Free Flow Rate (Gph): 58.7
Min Pressure Range (Psi): 94.3
Strainer Included: Yes
Pin Count: 4
Pin Shape: Flat
Connector Shape: Oval
Connector Gender: Male
Inline Pump: No
In Tank: Yes
Negative Ground: Yes
Pump Type: Turbine
Volts: 12 vDC

FORD 4L3Z9H307BF, 4L3Z 9H307 BF, 5L3Z9H307BB, 5L3Z 9H307 BB, 6L3Z9H307B, 6L3Z 9H307 B, 7L3Z9H307B, 7L3Z 9H307 B, 8L3Z9H307B, 8L3Z 9H307 B, 4L3U9H307BH, 4L3U 9H307 BH, 5L349H307BB, 5L34 9H307 BB, 6L349H307GD, 6L34 9H307 GD, 8L349H307GA, 8L34 9H307 GA, 8L3Z9A213B, 8L3Z9G307B, 8L3Z 9G307 B,

SPECTRA PREMIUM SP2070M
BOSCH 69165
DELPHI FG0846
AIRTEX E2533M
MOTORCRAFT PFS208

FORD F-150 2005-2008
FORD LOBO 2006-2008
LINCOLN MARK LT 2006-2008
