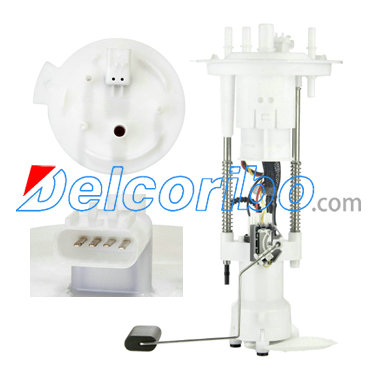

FORD 4L3Z9H307CF, 5L3Z9H307CB, 6L3Z9H307C, 7L3Z9H307C, 8L3Z9H307C, 8L3Z9A213B Electric Fuel Pump Assembly

Description: Fuel Pump Module Assembly
Gaskets Included: Yes
Height (in): 13.6
Max Pressure Range (Psi): 130.5
Max Free Flow (Gph): 57.9
Resistance Empty (Ohms): 15
Resistance Full (Ohms): 160
Rheostat Range (Ohms): 15-160
Inlet Quantity: 1
Inlet Type: Quick Connect
Inlet Diameter (IN): 5/16
Outlet Quantity: 1
Outlet Type: Quick Connect
Outlet Diameter (IN): 3/8
Compatible Fuels: Gas
Wiring Harness Included: No
Hardware Included: Yes
Min Free Flow Rate (Gph): 48.5
Min Pressure Range (Psi): 94.2
Strainer Included: Yes
Pin Count: 4
Pin Shape: Flat
Connector Shape: Rectangular
Connector Gender: Male
Inline Pump: No
In Tank: Yes
Negative Ground: Yes
Pump Type: Turbine
Volts: 12 vDC

FORD 4L3Z9H307CF, 4L3Z 9H307 CF, 5L3Z9H307CB, 5L3Z 9H307 CB, 6L3Z9H307C, 6L3Z 9H307 C, 7L3Z9H307C, 7L3Z 9H307 C, 8L3Z9H307C, 8L3Z 9H307 C, 8L3Z9A213B,

SPECTRA PREMIUM SP2005M
BOSCH 69188
DELPHI FG0850
AIRTEX E2441M
MOTORCRAFT PFS209

FORD F-150 2004-2008
FORD LOBO 2007
LINCOLN MARK LT 2007-2008
