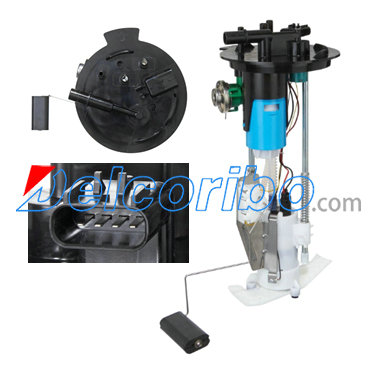

FORD 4L5Z9H307CF, 5L5Z9H307CA, 6L5Z9H307C, 6L5Z9H307CA, 6L5Z9H307F Electric Fuel Pump Assembly

Description: Fuel Pump Module Assembly
Gaskets Included: Yes
Height (in): 13.3
Max Pressure Range (Psi): 123.5
Max Free Flow (Gph): 55.6
Resistance Empty (Ohms): 15
Resistance Full (Ohms): 160
Rheostat Range (Ohms): 15-160
Inlet Quantity: 1
Inlet Type: Quick Connect
Inlet Diameter (IN): 5/16
Outlet Quantity: 1
Outlet Type: Quick Connect
Outlet Diameter (IN): 3/8
Compatible Fuels: Gas
Wiring Harness Included: No
Hardware Included: Yes
Min Free Flow Rate (Gph): 46.4
Min Pressure Range (Psi): 79.7
Strainer Included: Yes
Pin Count: 4
Pin Shape: Round
Connector Shape: Oval
Connector Gender: Male
Inline Pump: No
In Tank: Yes
Negative Ground: Yes
Pump Type: Turbine
Volts: 12 vDC

FORD 4L5Z9H307CF, 4L5Z 9H307 CF, 5L5Z9H307CA, 5L5Z 9H307 CA, 6L5Z9H307C, 6L5Z 9H307 C, 6L5Z9H307CA, 6L5Z 9H307 CA, 6L5Z9H307F, 6L5Z 9H307 F, 1F8113350, 1F8113350A, 1F81 13350 A, 1F8113350B, 1F81 13350 B, 4L5Z9H307BB, 4L5Z 9H307 BB, 4L5Z9H307BF, 4L5Z 9H307 BF, 6L5Z9H307B, 6L5Z 9H307 B, 6L5Z9H307BA, 6L5Z 9H307 BA, 6L5Z9H307E, 6L5Z 9H307 E,

SPECTRA PREMIUM SP2006M
DELPHI FG0882
AIRTEX E2363M

FORD RANGER 2004-2006
MAZDA B2300 2004
MAZDA B3000 2004-2006
MAZDA B4000 2004-2006
