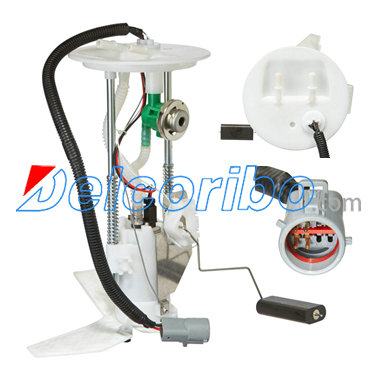

FORD 2L2Z9H307DA, 2L2Z9H307DB, 3L2Z9H307EA, 3L2Z9H307EB, 3L2Z9H307EC, 3L2Z9H307ED Electric Fuel Pump Assembly

Description: Fuel Pump Module Assembly
Gaskets Included: Yes
Height (in): 12.2
Max Pressure Range (Psi): 66.7
Max Free Flow (Gph): 52.5
Resistance Empty (Ohms): 15
Resistance Full (Ohms): 160
Rheostat Range (Ohms): 15-160
Inlet Quantity: 1
Inlet Type: Quick Connect
Inlet Diameter (IN): 5/16
Outlet Quantity: 1
Outlet Type: Quick Connect
Outlet Diameter (IN): 3/8
Compatible Fuels: Gas
Wiring Harness Included: No
Hardware Included: Yes
Min Free Flow Rate (Gph): 46.3
Min Pressure Range (Psi): 59.5
Strainer Included: Yes
Pin Count: 4
Pin Shape: Round
Connector Shape: Round
Connector Gender: Male
Inline Pump: No
In Tank: Yes
Negative Ground: Yes
Pump Type: Turbine
Volts: 12 vDC

FORD 2L2Z9H307DA, 2L2Z 9H307 DA, 2L2Z9H307DB, 2L2Z 9H307 DB, 3L2Z9H307EA, 3L2Z 9H307 EA, 3L2Z9H307EB, 3L2Z 9H307 EB, 3L2Z9H307EC, 3L2Z 9H307 EC, 3L2Z9H307ED, 3L2Z 9H307 ED,

SPECTRA PREMIUM SP2008M
DELPHI FG1333
AIRTEX E2444M
AIRTEX E2348M

FORD EXPLORER SPORT TRAC 2002-2003
