FORD F6TZ9A407KA, F6TZ9A407KB, F6TZ-9A407-KB Electric Fuel Pump Assembly

FORD F6TZ9A407KA, F6TZ9A407KB, F6TZ-9A407-KB Electric Fuel Pump Assembly

FORD F6TZ9A407KA, F6TZ9A407KB, F6TZ-9A407-KB Electric Fuel Pump Assembly

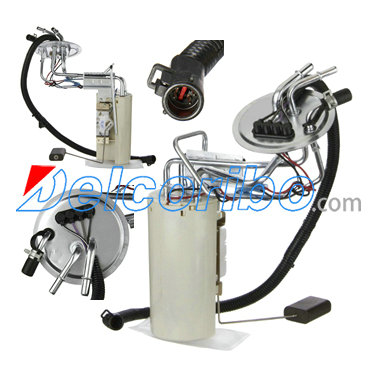

FPM1027 FORD Electric Fuel Pump Assembly
Description: Fuel Pump And Sender Assembly
Gaskets Included: Yes
Height (in): 11.6
Max Pressure Range (Psi): 130
Max Free Flow (Gph): 26.4
Resistance Empty (Ohms): 15
Resistance Full (Ohms): 160
Rheostat Range (Ohms): 16-160
Inlet Quantity: 1
Inlet Type: Quick Connect
Inlet Diameter (IN): 5/16
Outlet Quantity: 1
Outlet Type: Quick Connect
Outlet Diameter (IN): 3/8
Compatible Fuels: Gas
Wiring Harness Included: No
Hardware Included: Yes
Min Free Flow Rate (Gph): 21.1
Min Pressure Range (Psi): 87
Strainer Included: Yes
Pin Count: 4
Pin Shape: Round
Connector Shape: Round
Connector Gender: Male
Inline Pump: No
In Tank: Yes
Negative Ground: Yes
Pump Type: Turbine
Volts: 12 vDC
FORD F6TZ9A407KA, F6TZ9A407KB,
SPECTRA PREMIUM SP2010H
AIRTEX E2059MN
FORD F SUPER DUTY 1992-1996
FORD F-150 1992-1997
FORD F-250 1992-1997
FORD F-350 1992-1998
