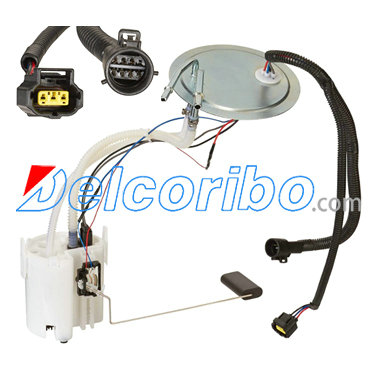

FOED 3C3Z9H307KA, 3C3Z9H307KB, F81Z9H307KA, F81Z9H307KE, F81Z9H307KF Electric Fuel Pump Assembly

Description: Fuel Pump Module Assembly
Gaskets Included: Yes
Height (in): 21.0
Max Pressure Range (Psi): 101.5
Max Free Flow (Gph): 44.9
Resistance Empty (Ohms): 15
Resistance Full (Ohms): 160
Rheostat Range (Ohms): 15-160
Inlet Quantity: 1
Inlet Type: Quick Connect
Inlet Diameter (IN): 5/16
Outlet Quantity: 1
Outlet Type: Quick Connect
Outlet Diameter (IN): 3/8
Compatible Fuels: Gas
Wiring Harness Included: No
Hardware Included: Yes
Min Free Flow Rate (Gph): 39.6
Min Pressure Range (Psi): 87
Strainer Included: Yes
Pin Count: 8
Pin Shape: Round
Connector Shape: Round
Connector Gender: Male
Inline Pump: No
In Tank: Yes
Negative Ground: Yes
Volts: 12 vDC

FOED 3C3Z9H307KA, 3C3Z 9H307 KA, 3C3Z9H307KB, 3C3Z 9H307 KB, F81Z9H307KA, F81Z 9H307 KA, F81Z9H307KE, F81Z 9H307 KE, F81Z9H307KF, F81Z 9H307 KF, P2501M,

SPECTRA PREMIUM SP2038M
BOSCH 67178
DELPHI FG0360
AIRTEX E2230M

FORD F-250 SUPER DUTY 1999-2004
FORD F-350 SUPER DUTY 1999-2005
