CHEVROLET 22631715, 22674713, 22683260, 22709331, 88957239, 88966970, 88967294 Electric Fuel Pump Assembly

CHEVROLET 22631715, 22674713, 22683260, 22709331, 88957239, 88966970, 88967294 Electric Fuel Pump Assembly

CHEVROLET 22631715, 22674713, 22683260, 22709331, 88957239, 88966970, 88967294 Electric Fuel Pump Assembly

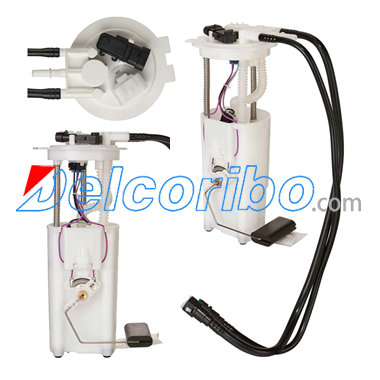

FPM1045 CHEVROLET Electric Fuel Pump Assembly
Description Fuel Pump Module Assembly
Gaskets Included Yes
Height (in) 10.6
Max Pressure Range (Psi) 116
Max Free Flow (Gph) 55.7
Resistance Empty (Ohms) 40
Resistance Full (Ohms) 250
Rheostat Range (Ohms) 40-250
Inlet Quantity 1
Inlet Type Quick Connect
Inlet Diameter (IN) 5/16
Outlet Quantity 1
Outlet Type Quick Connect
Outlet Diameter (IN) 3/8
Compatible Fuels Gas
Wiring Harness Included Yes
Hardware Included Yes
Min Free Flow Rate (Gph) 46.4
Min Pressure Range (Psi) 58
Strainer Included Yes
Pin Count 4
Pin Shape Flat
Connector Shape Oval
Connector Gender Male
Inline Pump No
In Tank Yes
Negative Ground Yes
Pump Type Turbine
Volts 12 vDC
CHEVROLET 22631715, 22674713, 22683260, 22709331, 88957239, 88966970, 88967294, P1013M, 88967292, 22669454, 9535122,
SPECTRA PREMIUM SP61374M
BOSCH 67475, F 00E 192 063
DENSO 9530023
DELPHI FG0375
CARTER P74831M
AIRTEX E3507M
CHEVROLET CAVALIER 2000-2005
CHEVROLET CLASSIC 2004-2005
CHEVROLET MALIBU 2000-2003
OLDSMOBILE ALERO 2000-2004
PONTIAC GRAND AM 2000-2005
PONTIAC SUNFIRE 2000-2005
