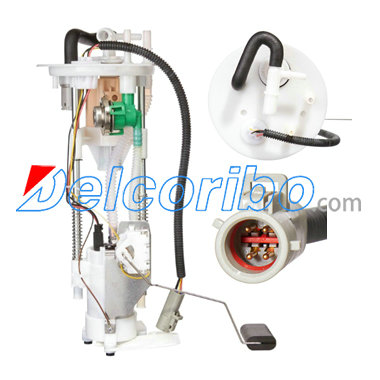

FORD 1F2013350, 1F2013350A, 1F2013350B, 1F2013350C, 1F2013350E, 1L5Z9H307FA Electric Fuel Pump Assembly

Description: Fuel Pump Module Assembly
Gaskets Included: Yes
Height (in): 13.9
Max Pressure Range (Psi): 123
Max Free Flow (Gph): 54
Resistance Empty (Ohms): 15
Resistance Full (Ohms): 160
Rheostat Range (Ohms): 15-160
Inlet Quantity: 1
Inlet Type: Quick Connect
Inlet Diameter (IN): 5/16
Outlet Quantity: 1
Outlet Type: Quick Connect
Outlet Diameter (IN): 3/8
Compatible Fuels: Gas
Wiring Harness Included: No
Hardware Included: Yes
Min Free Flow Rate (Gph): 45
Min Pressure Range (Psi): 80
Strainer Included: Yes
Pin Count: 4
Pin Shape: Round
Connector Shape: Round
Connector Gender: Male
Inline Pump: No
In Tank: Yes
Negative Ground: Yes
Pump Type: Turbine
Volts: 12 vDC

MAZDA 1F2013350, 1F2013350A, 1F20 13350 A, 1F2013350B, 1F20 13350 B, 1F2013350C, 1F20 13350 C, 1F2013350E, 1F20 13350 E, 1L5Z9H307FA, 1L5Z 9H307 FA, 1L5Z9H307FE, 1L5Z 9H307 FE, 1L5Z9H307FF, 1L5Z 9H307 FF, 3L5Z9H307FA, 3L5Z 9H307 FA, 3L5Z9H307FC, 3L5Z 9H307 FC, 3L5Z9H307FD, 3L5Z 9H307 FD, 3L5Z9H307FF, 3L5Z 9H307 FF, AF2013350A, AF20 13350 A, FORD 1F2013350D, 1F20 13350 D,

SPECTRA PREMIUM SP2293M
DELPHI FG0873
AIRTEX E2293M

FORD RANGER 2001-2003
MAZDA B2300 2001-2003
MAZDA B3000 2001-2003
MAZDA B4000 2001-2003
