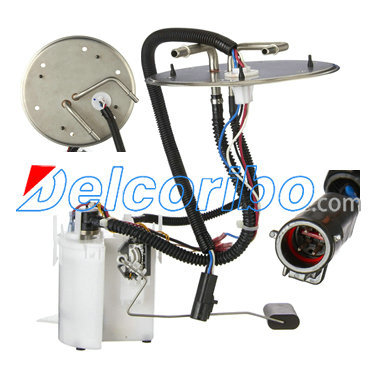

FORD 3C3Z9H307DA, 3C3Z9H307DB, F81Z9H307DA, F81Z9H307DD, F81Z9H307DE Electric Fuel Pump Assembly

Description: Fuel Pump Module Assembly
Gaskets Included: Yes
Height (in): 19.5
Max Pressure Range (Psi): 123.25
Max Free Flow (Gph): 46.4
Resistance Empty (Ohms): 15
Resistance Full (Ohms): 160
Rheostat Range (Ohms): 15-160
Inlet Quantity: 1
Inlet Type: Quick Connect
Inlet Diameter (IN): 5/16
Outlet Quantity: 1
Outlet Type: Quick Connect
Outlet Diameter (IN): 3/8
Compatible Fuels: Gas
Wiring Harness Included: No
Hardware Included: Yes
Min Free Flow Rate (Gph): 34.3
Min Pressure Range (Psi): 79.8
Strainer Included: Yes
Pin Count: 4
Pin Shape: Round
Connector Shape: Round
Connector Gender: Male
Inline Pump: No
In Tank: Yes
Negative Ground: Yes
Pump Type: Turbine
Volts: 12 vDC

FORD 3C3Z9H307DA, 3C3Z 9H307 DA, 3C3Z9H307DB, 3C3Z 9H307 DB, F81Z9H307DA, F81Z 9H307 DA, F81Z9H307DD, F81Z 9H307 DD, F81Z9H307DE, F81Z 9H307 DE, P2504M,

SPECTRA PREMIUM SP2234M
BOSCH 67184
DELPHI FG0950
AIRTEX E2234M
CARTER P74942M

FORD F-350 SUPER DUTY 1999-2004
FORD F-450 SUPER DUTY 1999-2004
FORD F-550 SUPER DUTY 1999-2004
