FORD 3S4Z9H307BA, 3S4Z9H307BC, 3S4Z-9H307-BC, 2M5Z9H307AD, 2M5Z-9H307-AD Electric Fuel Pump Assembly

FORD 3S4Z9H307BA, 3S4Z9H307BC, 3S4Z-9H307-BC, 2M5Z9H307AD, 2M5Z-9H307-AD Electric Fuel Pump Assembly

FORD 3S4Z9H307BA, 3S4Z9H307BC, 3S4Z-9H307-BC, 2M5Z9H307AD, 2M5Z-9H307-AD Electric Fuel Pump Assembly

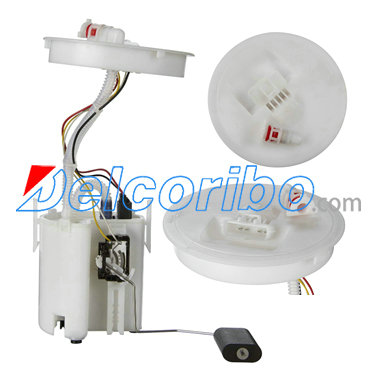

FPM1125 FORD Electric Fuel Pump Assembly
Description: Fuel Pump Module Assembly
Gaskets Included: No
Height (in): 13
Max Pressure Range (Psi): 123
Max Free Flow (Gph): 67.2
Resistance Empty (Ohms): 15
Resistance Full (Ohms): 160
Rheostat Range (Ohms): 15-160
Outlet Quantity: 1
Outlet Type: Quick Connect
Outlet Diameter (IN): 5/16
Compatible Fuels: Gas
Wiring Harness Included: No
Hardware Included: Yes
Min Free Flow Rate (Gph): 57.9
Min Pressure Range (Psi): 87
Strainer Included: Yes
Pin Count: 4
Pin Shape: Flat
Connector Shape: Oval
Connector Gender: Male
Inline Pump: No
In Tank: Yes
Negative Ground: Yes
Pump Type: Turbine
Volts: 12 vDC
FORD 3S4Z9H307BA, 3S4Z 9H307 BA, 3S4Z9H307BC, 3S4Z 9H307 BC, P2033S, 2M5Z9H307AD, 2M5Z 9H307 AD,
SPECTRA PREMIUM SP2326M
BOSCH 67250
DELPHI FG1342
CARTER P76018M
AIRTEX E2326M
FORD FOCUS 2002-2004
