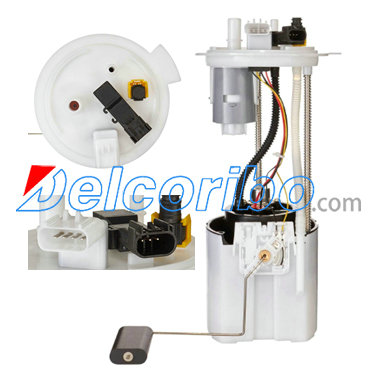

DELPHI FG1479, FORD BC2Z9H307B, BC2Z-9H307-B Electric Fuel Pump Assembly

DELPHI FG1479, FORD BC2Z9H307B, BC2Z-9H307-B Electric Fuel Pump Assembly

DELPHI FG1479, FORD BC2Z9H307B, BC2Z-9H307-B Electric Fuel Pump Assembly
FPM1158 FORD Electric Fuel Pump Assembly
Description: Fuel Pump Module Assembly
Gaskets Included: Yes
Height (in): 14
Max Pressure Range (Psi): 61
Max Free Flow (Gph): 70
Resistance Empty (Ohms): 180
Resistance Full (Ohms): 10
Rheostat Range (Ohms): 180-10
Inlet Quantity: 1
Inlet Type: Quick Connect
Inlet Diameter (IN): 1/4
Outlet Quantity: 1
Outlet Type: Quick Connect
Outlet Diameter (IN): 3/8
Compatible Fuels: Flex / Gas
Wiring Harness Included: No
Hardware Included: Yes
Min Free Flow Rate (Gph): 61
Min Pressure Range (Psi): 55
Strainer Included: Yes
Pin Count: 4
Pin Shape: Flat
Connector Shape: Oval
Connector Gender: Male
Inline Pump: No
In Tank: Yes
Negative Ground: Yes
Pump Type: Turbine
Volts: 12 vDC
FORD BC2Z9H307B, BC2Z 9H307 B,
SPECTRA PREMIUM SP2471M
DELPHI FG1479
AIRTEX E2580M
MOTORCRAFT PFS574
FORD E-150 2011-2014
FORD E-250 2011-2014
FORD E-350 2011-2015
FORD E-450 2011-2015
FORD ECONOLINE 2011-2014
