Fuel System
>
Electric Fuel Pump Assembly
>
FORD DA839H307CF, DA83 9H307 CF, DA8Z9A407B, DA8Z9H307D, DA8Z9H307K Electric Fuel Pump Assembly

FORD DA839H307CF, DA83 9H307 CF, DA8Z9A407B, DA8Z9H307D, DA8Z9H307K Electric Fuel Pump Assembly

FORD DA839H307CF, DA83 9H307 CF, DA8Z9A407B, DA8Z9H307D, DA8Z9H307K Electric Fuel Pump Assembly

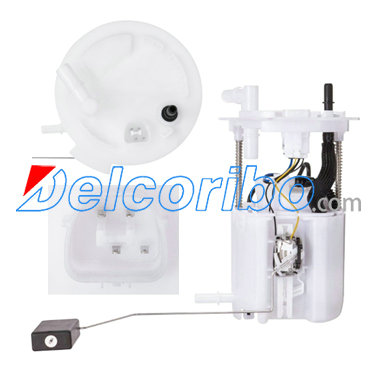

FPM1178 FORD Electric Fuel Pump Assembly
Description: Fuel Pump Module Assembly
Gaskets Included: Yes
Height (in): 9.8
Max Pressure Range (Psi): 90
Max Free Flow (Gph): 72
Resistance Empty (Ohms): 180
Resistance Full (Ohms): 10
Rheostat Range (Ohms): 180-10
Outlet Quantity: 1
Outlet Type: Quick Connect
Outlet Diameter (IN): 3/8
Compatible Fuels: Gas
Wiring Harness Included: No
Hardware Included: Yes
Min Free Flow Rate (Gph): 63
Min Pressure Range (Psi): 84
Strainer Included: Yes
Pin Count: 4
Pin Shape: Flat
Connector Shape: Trapeze
Connector Gender: Male
Inline Pump: No
In Tank: Yes
Negative Ground: Yes
Pump Type: Turbine
Volts: 12 vDC
FORD DA839H307CF, DA83 9H307 CF, DA8Z9A407B, DA8Z9H307D, DA8Z 9H307 D, DA8Z9H307K, DA8Z 9H307 K,
SPECTRA PREMIUM SP2511M
MOTORCRAFT PFS1028 PFS1042
CARTER P77048M
FORD EXPLORER 2013-2018
FORD FLEX 2013-2019
FORD POLICE INTERCEPTOR UTILITY 2014-2018
LINCOLN MKT 2010-2018
