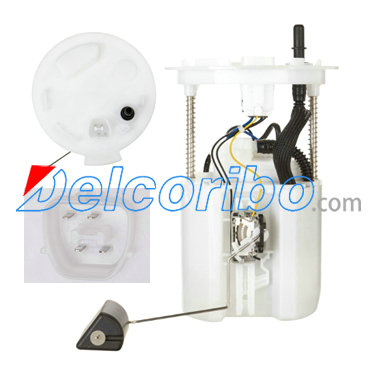

FORD DG9Z9H307D, DG9Z-9A407-D, DG9Z9H307S, EG9Z9H307A, EG9Z-9H307-A), DG9Z9A299B, EG9Z9A299A Electric Fuel Pump Assembly

Description: Fuel Pump Module Assembly
Gaskets Included: Yes
Height (in): 9.8
Max Pressure Range (Psi): 64
Max Free Flow (Gph): 66
Resistance Empty (Ohms): 180
Resistance Full (Ohms): 10
Rheostat Range (Ohms): 180-10
Outlet Quantity: 1
Outlet Type: Quick Connect
Outlet Diameter (IN): 3/8
Compatible Fuels: Gas
Wiring Harness Included: No
Hardware Included: Yes
Min Free Flow Rate (Gph): 57
Min Pressure Range (Psi): 58
Strainer Included: Yes
Pin Count: 4
Pin Shape: Flat
Connector Shape: Trapeze
Connector Gender: Male
Inline Pump: No
In Tank: Yes
Negative Ground: Yes
Pump Type: Turbine
Volts: 12 vDC

FORD DG9Z9H307D, DG9Z 9H307 D, DG9Z9H307S, DG9Z 9H307 S, EG9Z9H307A, EG9Z 9H307 A, DG9Z9A299B, EG9Z9A299A,

SPECTRA PREMIUM SP2515M
DELPHI FG1861
AIRTEX E2600M
MOTORCRAFT PFS1066
BOSCH F 00E 194 663 F00E194663

FORD FUSION 2014-2016
LINCOLN MKZ 2013-2016
