FORD AE5Z9H307D, AE5Z-9H307-D, AE5Z9H307K, AE5Z-9H307-K Electric Fuel Pump Assembly

FORD AE5Z9H307D, AE5Z-9H307-D, AE5Z9H307K, AE5Z-9H307-K Electric Fuel Pump Assembly

FORD AE5Z9H307D, AE5Z-9H307-D, AE5Z9H307K, AE5Z-9H307-K Electric Fuel Pump Assembly

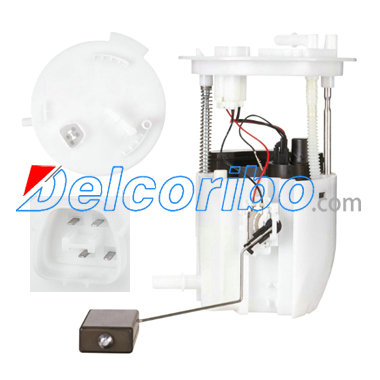

FPM1190 FORD Electric Fuel Pump Assembly
Description: Fuel Pump Module Assembly
Gaskets Included: Yes
Height (in): 9.0
Max Pressure Range (Psi): 60
Max Free Flow (Gph): 54
Resistance Empty (Ohms): 180
Resistance Full (Ohms): 10
Rheostat Range (Ohms): 180-10
Outlet Quantity: 1
Outlet Type: Quick Connect
Outlet Diameter (IN): 3/8
Compatible Fuels: Flex / Gas
Wiring Harness Included: No
Hardware Included: Yes
Min Free Flow Rate (Gph): 45
Min Pressure Range (Psi): 55
Strainer Included: Yes
Pin Count: 4
Pin Shape: Flat
Connector Shape: Trapeze
Connector Gender: Male
Inline Pump: No
In Tank: Yes
Negative Ground: Yes
Pump Type: Turbine
Volts: 12 vDC
FORD AE5Z9H307D, AE5Z 9H307 D, AE5Z9H307K, AE5Z 9H307 K,
SPECTRA PREMIUM SP2538M
DELPHI FG1325
AIRTEX E2560M
CARTER P76586M
MOTORCRAFT PFS599
FORD FUSION 2010-2012
MERCURY MILAN 2010-2011
