FORD AR3Z9H307B, AR3Z-9H307-B Electric Fuel Pump Assembly

FORD AR3Z9H307B, AR3Z-9H307-B Electric Fuel Pump Assembly

FORD AR3Z9H307B, AR3Z-9H307-B Electric Fuel Pump Assembly

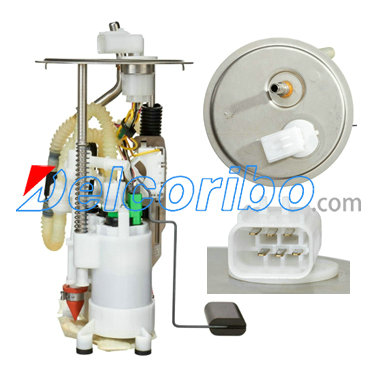

FPM1196 FORD Electric Fuel Pump Assembly
Description: Fuel Pump Module Assembly
Gaskets Included: No
Height (in): 11
Max Pressure Range (Psi): 107
Max Free Flow (Gph): 102
Resistance Empty (Ohms): 180
Resistance Full (Ohms): 10
Rheostat Range (Ohms): 180-10
Outlet Quantity: 1
Outlet Type: Quick Connect
Outlet Diameter (IN): 3/8
Compatible Fuels: Gas
Wiring Harness Included: No
Hardware Included: Yes
Min Free Flow Rate (Gph): 93
Min Pressure Range (Psi): 87
Strainer Included: Yes
Pin Count: 6
Pin Shape: Flat
Connector Shape: Rectangular
Connector Gender: Male
Inline Pump: No
In Tank: Yes
Negative Ground: Yes
Pump Type: Turbine
Volts: 12 vDC
FORD AR3Z9H307B, AR3Z 9H307 B,
SPECTRA PREMIUM SP2558M
CARTER P76595M
MOTORCRAFT PFS503
FORD MUSTANG 2010-2012
