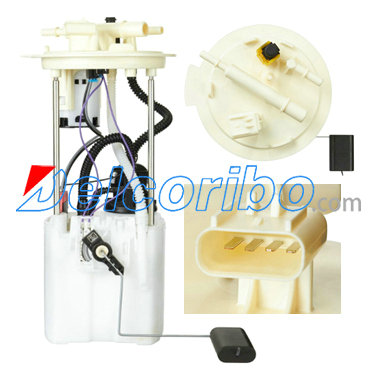

FORD CK4Z9H307A, CK4Z-9H307-A, CK4Z9H307D, CK4Z-9H307-D, CK4Z9A299B, CK4Z-9A299-B Electric Fuel Pump Assembly

Description: Fuel Pump Module Assembly
Gaskets Included: No
Height (in): 13.3
Max Pressure Range (Psi): 64
Max Free Flow (Gph): 58
Resistance Empty (Ohms): 180
Resistance Full (Ohms): 10
Rheostat Range (Ohms): 180-10
Outlet Quantity: 1
Outlet Type: Quick Connect
Outlet Diameter (IN): 3/8
Compatible Fuels: Flex / Gas
Wiring Harness Included: No
Hardware Included: Yes
Min Free Flow Rate (Gph): 48
Min Pressure Range (Psi): 58
Strainer Included: Yes
Pin Count: 4
Pin Shape: Flat
Connector Shape: Rectangular
Connector Gender: Male
Inline Pump: No
In Tank: Yes
Negative Ground: Yes
Pump Type: Turbine
Volts: 12 vDC

FORD CK4Z9H307A, CK4Z 9H307 A, CK4Z9H307D, CK4Z 9H307 D, CK4Z9A299B,

SPECTRA PREMIUM SP2562M
DELPHI FG1977
AIRTEX E2649M
MOTORCRAFT PFS1219

FORD TRANSIT 150 2015-2019
FORD TRANSIT 250 2015-2019
FORD TRANSIT 350 2015-2019
