FORD FL3Z9H307A, FL3Z-9H307-A, FL3Z9H307J, FL3Z-9H307-J Electric Fuel Pump Assembly

FORD FL3Z9H307A, FL3Z-9H307-A, FL3Z9H307J, FL3Z-9H307-J Electric Fuel Pump Assembly

FORD FL3Z9H307A, FL3Z-9H307-A, FL3Z9H307J, FL3Z-9H307-J Electric Fuel Pump Assembly

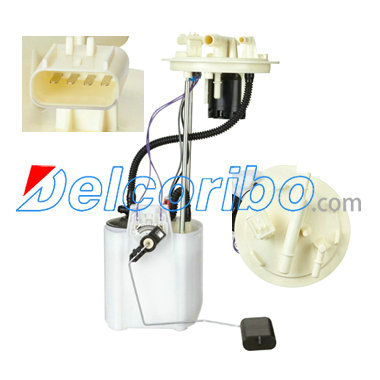

FPM1199 FORD Electric Fuel Pump Assembly
Description: Fuel Pump Module Assembly
Gaskets Included: No
Height (in): 14.2
Max Pressure Range (Psi): 72
Max Free Flow (Gph): 68
Resistance Empty (Ohms): 180
Resistance Full (Ohms): 10
Rheostat Range (Ohms): 180-10
Outlet Quantity: 1
Outlet Type: Quick Connect
Outlet Diameter (IN): 3/8
Compatible Fuels: Flex / Gas
Wiring Harness Included: No
Hardware Included: Yes
Min Free Flow Rate (Gph): 59
Min Pressure Range (Psi): 58
Strainer Included: Yes
Pin Count: 4
Pin Shape: Flat
Connector Shape: Rectangular
Connector Gender: Male
Inline Pump: No
In Tank: Yes
Negative Ground: Yes
Pump Type: Turbine
Volts: 12 vDC
FORD FL3Z9H307A, FL3Z 9H307 A, FL3Z9H307J, FL3Z 9H307 J,
SPECTRA PREMIUM SP2564M
MOTORCRAFT PFS1177
DELPHI FG1990
AIRTEX E2658M
FORD F-150 2015-2018
