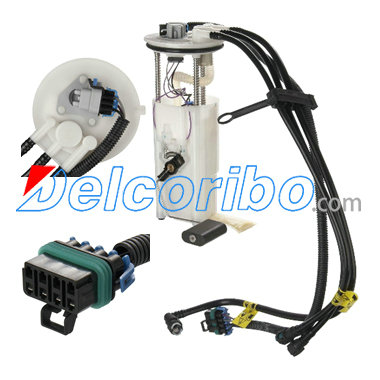

FPM1205 CHEVROLET Electric Fuel Pump Assembly
Description Fuel Pump Module Assembly
Gaskets Included Yes
Height (in) 11.2
Max Pressure Range (Psi) 116
Max Free Flow (Gph) 57.7
Resistance Empty (Ohms) 2
Resistance Full (Ohms) 90
Rheostat Range (Ohms) 2-90
Inlet Quantity 1
Inlet Type Quick Connect
Inlet Diameter (IN) 5/16
Outlet Quantity 1
Outlet Type Quick Connect
Outlet Diameter (IN) 3/8
Compatible Fuels Gas
Wiring Harness Included Yes
Hardware Included Yes
Min Free Flow Rate (Gph) 48.6
Min Pressure Range (Psi) 94
Strainer Included Yes
Pin Count 6
Pin Shape Round
Connector Shape Square
Connector Gender Male
Inline Pump No
In Tank Yes
Negative Ground Yes
Pump Type Turbine
Volts 12 vDC
GM 19179623, 25163021, 25168924, P259M, 25161301, 9535031, 19332096,
SPECTRA PREMIUM SP259M
DENSO 9530007
DELPHI FG0049
AIRTEX E3914M
BRUTE POWER 1010299
CARTER P74688M
CHEVROLET CAVALIER 1995
PONTIAC SUNFIRE 1995
