HYUNDAI 311102S500, 31110-2s500, 353012P000, 35301-2P000 Electric Fuel Pump Assembly

HYUNDAI 311102S500, 31110-2s500, 353012P000, 35301-2P000 Electric Fuel Pump Assembly

HYUNDAI 311102S500, 31110-2s500, 353012P000, 35301-2P000 Electric Fuel Pump Assembly

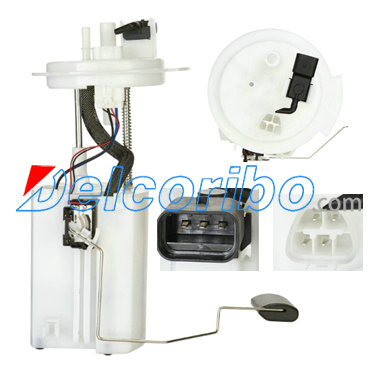

FPM1249 HYUNDAI Electric Fuel Pump Assembly
Description: Fuel Pump Module Assembly
Gaskets Included: Yes
Height (in): 11.6
Max Pressure Range (Psi): 53.65
Max Free Flow (Gph): 55
Resistance Empty (Ohms): 200
Resistance Full (Ohms): 8
Rheostat Range (Ohms): 200-8
Outlet Quantity: 1
Outlet Type: Quick Connect
Outlet Diameter (IN): 5/16
Compatible Fuels: Gas
Wiring Harness Included: No
Hardware Included: Yes
Min Free Flow Rate (Gph): 46
Min Pressure Range (Psi): 48
Strainer Included: Yes
Pin Count: 4
Pin Shape: Flat
Connector Shape: Trapeze
Connector Gender: Male
Inline Pump: No
In Tank: Yes
Negative Ground: Yes
Pump Type: Turbine
Volts: 12 vDC
HYUNDAI 311102S500, 353012P000,
SPECTRA PREMIUM SP3051M
AIRTEX E9059M
DELPHI FG1607
HYUNDAI TUCSON 2010-2011
KIA SPORTAGE 2011
