HYUNDAI 311101D550, 31110-1D550, 311101D550DS, 31110-1D550-DS Electric Fuel Pump Assembly

HYUNDAI 311101D550, 31110-1D550, 311101D550DS, 31110-1D550-DS Electric Fuel Pump Assembly

HYUNDAI 311101D550, 31110-1D550, 311101D550DS, 31110-1D550-DS Electric Fuel Pump Assembly

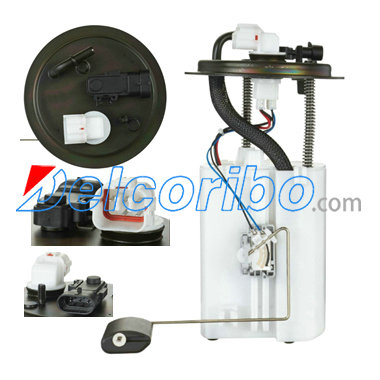

FPM1256 KIA Electric Fuel Pump Assembly
Description: Fuel Pump Module Assembly
Gaskets Included: Yes
Height (in): 10
Max Pressure Range (Psi): 58
Max Free Flow (Gph): 63
Resistance Empty (Ohms): 200
Resistance Full (Ohms): 8
Rheostat Range (Ohms): 200-8
Outlet Quantity: 1
Outlet Type: Quick Connect
Outlet Diameter (IN): 5/16
Compatible Fuels: Gas
Wiring Harness Included: No
Hardware Included: Yes
Min Free Flow Rate (Gph): 53
Min Pressure Range (Psi): 52
Strainer Included: Yes
Pin Count: 5
Pin Shape: Flat
Connector Shape: Rectangular
Connector Gender: Male
Inline Pump: No
In Tank: Yes
Negative Ground: Yes
Pump Type: Turbine
Volts: 12 vDC
HYUNDAI 311101D550, 311101D550DS,
SPECTRA PREMIUM SP3060M
DELPHI FG2193
KIA RONDO 2007-2012
