Fuel System
>
Electric Fuel Pump Assembly
>
CHEVROLET 19177237, 25316320, 19331241 Electric Fuel Pump Assembly

CHEVROLET 19177237, 25316320, 19331241 Electric Fuel Pump Assembly

CHEVROLET 19177237, 25316320, 19331241 Electric Fuel Pump Assembly

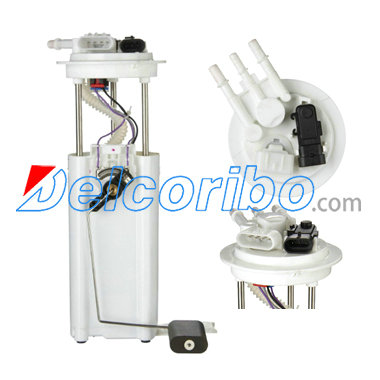

FPM1272 CHEVROLET Electric Fuel Pump Assembly
Description: Fuel Pump Module Assembly
Gaskets Included: Yes
Height (in): 12.2
Max Pressure Range (Psi): 130.5
Max Free Flow (Gph): 57.7
Resistance Empty (Ohms): 40
Resistance Full (Ohms): 250
Rheostat Range (Ohms): 40-250
Inlet Quantity: 1
Inlet Type: Quick Connect
Inlet Diameter (IN): 3/8
Outlet Quantity: 1
Outlet Type: Quick Connect
Outlet Diameter (IN): 3/8
Compatible Fuels: Gas
Wiring Harness Included: No
Hardware Included: Yes
Min Free Flow Rate (Gph): 48.6
Min Pressure Range (Psi): 72.5
Strainer Included: Yes
Pin Count: 4
Pin Shape: Flat
Connector Shape: Oval
Connector Gender: Male
Inline Pump: No
In Tank: Yes
Negative Ground: Yes
Pump Type: Turbine
Volts: 12 vDC
CHEVROLET 19177237, 25316320, P1000M, 19331241,
SPECTRA PREMIUM SP3369M
DENSO 9535058
DELPHI FG0102
AIRTEX E3369M
BOSCH 67301
CARTER P74920M
CHEVROLET CAMARO 1999-2002
PONTIAC FIREBIRD 1999-2002
