Fuel System
>
Electric Fuel Pump Assembly
>
CHEVROLET 15050444, 15013514, 15077623, 19206120, 19206122, 19206124, 8150504440, 88965820, 88966950, 88966952 Electric Fuel Pump Assembly

CHEVROLET 15050444, 15013514, 15077623, 19206120, 19206122, 19206124, 8150504440, 88965820, 88966950, 88966952 Electric Fuel Pump Assembly

CHEVROLET 15050444, 15013514, 15077623, 19206120, 19206122, 19206124, 8150504440, 88965820, 88966950, 88966952 Electric Fuel Pump Assembly

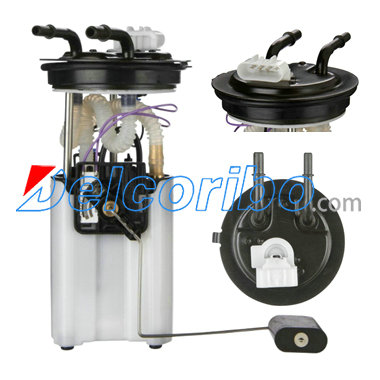

FPM1291 CHEVROLET Electric Fuel Pump Assembly
Description: Fuel Pump Module Assembly
Gaskets Included: Yes
Height (in): 9.2
Max Pressure Range (Psi): 123
Max Free Flow (Gph): 61.5
Resistance Empty (Ohms): 39
Resistance Full (Ohms): 250
Rheostat Range (Ohms): 39-250
Inlet Quantity: 1
Inlet Type: Quick Connect
Inlet Diameter (IN): 5/16
Outlet Quantity: 1
Outlet Type: Quick Connect
Outlet Diameter (IN): 3/8
Compatible Fuels: Gas
Wiring Harness Included: No
Hardware Included: Yes
Min Free Flow Rate (Gph): 52.5
Min Pressure Range (Psi): 80
Strainer Included: Yes
Pin Count: 4
Pin Shape: Flat
Connector Shape: Oval
Connector Gender: Male
Inline Pump: No
In Tank: Yes
Negative Ground: Yes
Pump Type: Turbine
Volts: 12 vDC
CHEVROLET 15050444, 15013514, 15077623, 19206120, 19206122, 19206124, 8150504440, 88965820, 88966950, 88966952,
SPECTRA PREMIUM SP3550M
DENSO 9535134
BOSCH 67415
DELPHI FG0411
AIRTEX E3549M
CARTER P75053M

BOSCH 67469, F 00E 192 497, F00E192497, F 00E 192 563, F00E192563
CHEVROLET SSR 2003-2004
CHEVROLET TRAILBLAZER 2002-2004
GMC ENVOY 2002-2004
ISUZU ASCENDER 2003-2004
