GM 19152156, 25348563, 25369311 Electric Fuel Pump Assembly

GM 19152156, 25348563, 25369311 Electric Fuel Pump Assembly

GM 19152156, 25348563, 25369311 Electric Fuel Pump Assembly

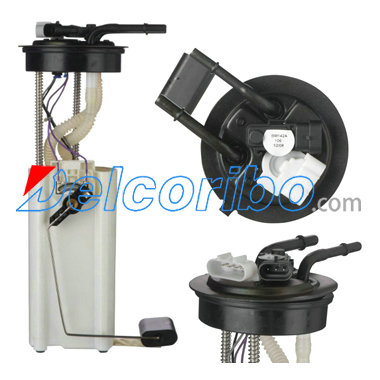

FPM1296 CHEVROLET Electric Fuel Pump Assembly
Description: Fuel Pump Module Assembly
Gaskets Included: Yes
Height (in): 13.4
Max Pressure Range (Psi): 130.5
Max Free Flow (Gph): 57.7
Resistance Empty (Ohms): 40
Resistance Full (Ohms): 250
Rheostat Range (Ohms): 40-250
Inlet Quantity: 1
Inlet Type: Quick Connect
Inlet Diameter (IN): 5/16
Outlet Quantity: 1
Outlet Type: Quick Connect
Outlet Diameter (IN): 3/8
Compatible Fuels: Gas
Wiring Harness Included: No
Hardware Included: Yes
Min Free Flow Rate (Gph): 48.6
Min Pressure Range (Psi): 72.5
Strainer Included: Yes
Pin Count: 4
Pin Shape: Flat
Connector Shape: Oval
Connector Gender: Male
Inline Pump: No
In Tank: Yes
Negative Ground: Yes
Pump Type: Turbine
Volts: 12 vDC
GM 19152156, 25348563, 25369311, P1562M,
SPECTRA PREMIUM SP3575M
DENSO 9535114
DELPHI FG0328
AIRTEX E3575M

ACDELCO MU1233
CARTER P75015M
CHEVROLET EXPRESS 3500 2003
GMC SAVANA 2500 2003
GMC SAVANA 3500 2003
