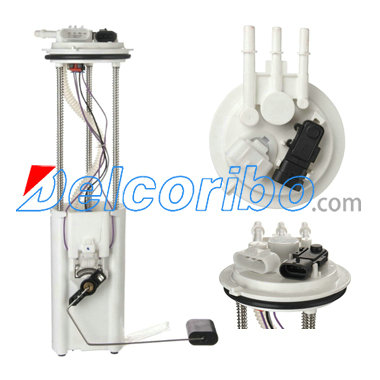

FPM1302 CHEVROLET Electric Fuel Pump Assembly
Description Fuel Pump Module Assembly
Gaskets Included Yes
Height (in) 16.0
Max Pressure Range (Psi) 130.5
Max Free Flow (Gph) 57.7
Resistance Empty (Ohms) 0
Resistance Full (Ohms) 90
Rheostat Range (Ohms) 0-90
Inlet Quantity 1
Inlet Type Quick Connect
Inlet Diameter (IN) 5/16
Outlet Quantity 1
Outlet Type Quick Connect
Outlet Diameter (IN) 3/8
Compatible Fuels Gas
Wiring Harness Included Yes
Hardware Included Yes
Min Free Flow Rate (Gph) 48.6
Min Pressure Range (Psi) 72.5
Strainer Included Yes
Pin Count 4
Pin Shape Flat
Connector Shape Oval
Connector Gender Male
Inline Pump No
In Tank Yes
Negative Ground Yes
Pump Type Turbine
Volts 12 vDC
GM 19179984, 25163486, P359M, 8191799840, 8251634860,
SPECTRA PREMIUM SP359M
DELPHI FG0027
AIRTEX E3923M
BRUTE POWER 1010142
CARTER P74717M
ACDELCO MU1781
CHEVROLET S10 PICKUP 1996
GMC SONOMA 1996
ISUZU HOMBRE 1996
