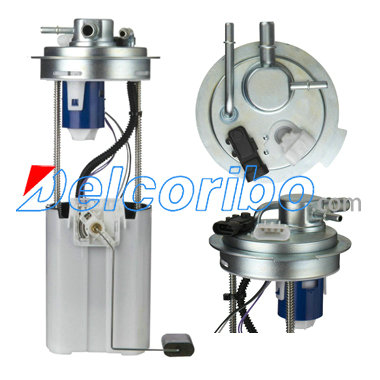

CHEVROLET 25366555, P1574M Electric Fuel Pump Assembly

Description: Fuel Pump Module Assembly
Gaskets Included: Yes
Height (in): 15.6
Max Pressure Range (Psi): 62.4
Max Free Flow (Gph): 67.5
Resistance Empty (Ohms): 250
Resistance Full (Ohms): 40
Rheostat Range (Ohms): 250-40
Outlet Quantity: 1
Outlet Type: Quick Connect
Outlet Diameter (IN): 3/8
Compatible Fuels: Gas
Wiring Harness Included: No
Hardware Included: Yes
Min Free Flow Rate (Gph): 58.2
Min Pressure Range (Psi): 56.6
Strainer Included: Yes
Pin Count: 4
Pin Shape: Flat
Connector Shape: Oval
Connector Gender: Male
Inline Pump: No
In Tank: Yes
Negative Ground: Yes
Pump Type: Turbine
Volts: 12 vDC

CHEVROLET 25366555, P1574M,

SPECTRA PREMIUM SP3678M
DELPHI FG0402
AIRTEX E3678M

CHEVROLET EXPRESS 1500 2004-2008
CHEVROLET EXPRESS 2500 2004-2008
CHEVROLET EXPRESS 3500 2004-2008
GMC SAVANA 1500 2004-2008
GMC SAVANA 2500 2004-2008
GMC SAVANA 3500 2004-2008
