CHEVROLET 25362257, P1576M Electric Fuel Pump Assembly

CHEVROLET 25362257, P1576M Electric Fuel Pump Assembly

CHEVROLET 25362257, P1576M Electric Fuel Pump Assembly

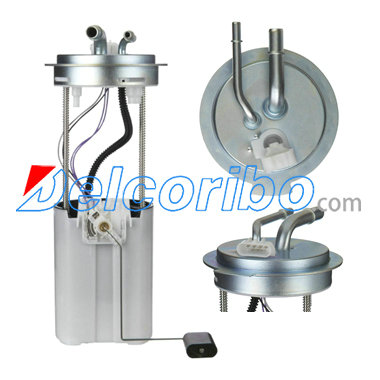

FPM1314 CHEVROLET Electric Fuel Pump Assembly
Description Fuel Pump Module Assembly
Gaskets Included Yes
Height (in) 15.6
Max Pressure Range (Psi) 62.4
Max Free Flow (Gph) 67.5
Resistance Empty (Ohms) 250
Resistance Full (Ohms) 40
Rheostat Range (Ohms) 250-40
Outlet Quantity 1
Outlet Type Quick Connect
Outlet Diameter (IN) 3/8
Compatible Fuels Gas
Wiring Harness Included No
Hardware Included Yes
Min Free Flow Rate (Gph) 58.2
Min Pressure Range (Psi) 56.6
Strainer Included Yes
Pin Count 4
Pin Shape Flat
Connector Shape Oval
Connector Gender Male
Inline Pump No
In Tank Yes
Negative Ground Yes
Pump Type Turbine
Volts 12 vDC
CHEVROLET 25362257, P1576M,
SPECTRA PREMIUM SP76091M
DELPHI FG0398
ACDELCO M10028
CHEVROLET EXPRESS 3500 2004-2006
GMC SAVANA 3500 2004-2006
