Fuel System
>
Electric Fuel Pump Assembly
>
GM 19177226, 25314323, P1515M, 25178961, 25314321, 19331272, 9535043 Electric Fuel Pump Assembly

GM 19177226, 25314323, P1515M, 25178961, 25314321, 19331272, 9535043 Electric Fuel Pump Assembly

GM 19177226, 25314323, P1515M, 25178961, 25314321, 19331272, 9535043 Electric Fuel Pump Assembly

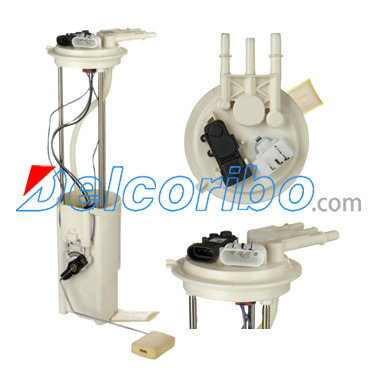

FPM1328 CHEVROLET Electric Fuel Pump Assembly
Description: Fuel Pump Module Assembly
Gaskets Included: Yes
Height (in): 16.3
Max Pressure Range (Psi): 130.5
Max Free Flow (Gph): 57.7
Resistance Empty (Ohms): 40
Resistance Full (Ohms): 250
Rheostat Range (Ohms): 40-250
Inlet Quantity: 1
Inlet Type: Quick Connect
Inlet Diameter (IN): 5/16
Outlet Quantity: 1
Outlet Type: Quick Connect
Outlet Diameter (IN): 3/8
Compatible Fuels: Gas
Wiring Harness Included: Yes
Hardware Included: Yes
Min Free Flow Rate (Gph): 48.6
Min Pressure Range (Psi): 72.5
Strainer Included: Yes
Pin Count: 4
Pin Shape: Flat
Connector Shape: Oval
Connector Gender: Male
Inline Pump: No
In Tank: Yes
Negative Ground: Yes
Pump Type: Turbine
Volts: 12 vDC
GM 19177226, 25314323, P1515M, 25178961, 25314321, 19331272, 9535043,
SPECTRA PREMIUM SP3957M
DENSO 9530009
BOSCH 67381
DELPHI FG0086
AIRTEX E3947M
BRUTE POWER 1010217
CHEVROLET C35 1999-2000
CHEVROLET C3500 PICKUP 1998-2003
CHEVROLET K3500 PICKUP 1998-2000
GMC C1500 PICKUP 1999
GMC C2500 PICKUP 1999
GMC C3500 PICKUP 1998-1999
GMC K1500 PICKUP 1999
GMC K2500 PICKUP 1999
GMC K3500 1998-1999
