GM 19179530, 19301983, 25319351, P556H, 19367496 Electric Fuel Pump Assembly

GM 19179530, 19301983, 25319351, P556H, 19367496 Electric Fuel Pump Assembly

GM 19179530, 19301983, 25319351, P556H, 19367496 Electric Fuel Pump Assembly

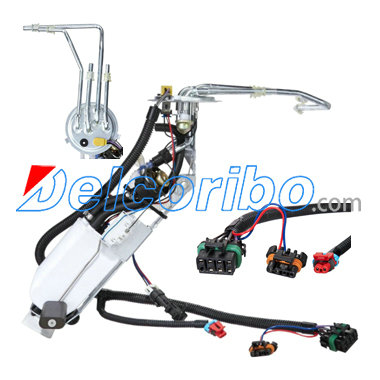

FPM1330 CHEVROLET Electric Fuel Pump Assembly
Description: Fuel Pump And Sender Assembly
Gaskets Included: Yes
Height (in): 10.5
Max Pressure Range (Psi): 116
Max Free Flow (Gph): 35.5
Resistance Empty (Ohms): 40
Resistance Full (Ohms): 250
Rheostat Range (Ohms): 40-250
Inlet Quantity: 1
Inlet Type: Quick Connect
Inlet Diameter (IN): 3/8
Outlet Quantity: 1
Outlet Type: Quick Connect
Outlet Diameter (IN): 5/16
Compatible Fuels: Gas
Wiring Harness Included: Yes
Hardware Included: Yes
Min Free Flow Rate (Gph): 26.3
Min Pressure Range (Psi): 94.3
Strainer Included: Yes
Pin Count: 7
Pin Shape: Square
Connector Shape: Rectangular
Connector Gender: Female
Inline Pump: No
In Tank: Yes
Negative Ground: Yes
Pump Type: Turbine
Volts: 12 vDC
GM 19179530, 19301983, 25319351, P556H, 19367496,
SPECTRA PREMIUM SP3961H
DELPHI HP10038
CARTER P74783S
ACDELCO MU2182
CHEVROLET CAMARO 1998
PONTIAC FIREBIRD 1998
