ISUZU 8251709010, -25170-901-0, 8251709011, 8-25170-901-1, 8971663510 Electric Fuel Pump Assembly

ISUZU 8251709010, -25170-901-0, 8251709011, 8-25170-901-1, 8971663510 Electric Fuel Pump Assembly

ISUZU 8251709010, -25170-901-0, 8251709011, 8-25170-901-1, 8971663510 Electric Fuel Pump Assembly

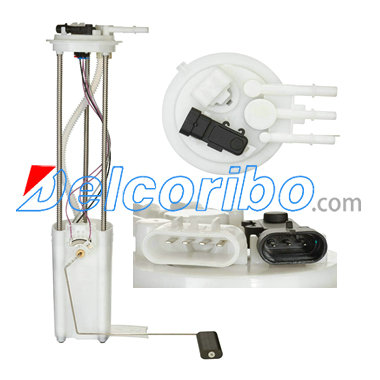

FPM1360 ISUZU Electric Fuel Pump Assembly
Description: Fuel Pump Module Assembly
Gaskets Included: Yes
Height (in): 20
Max Pressure Range (Psi): 131
Max Free Flow (Gph): 60
Resistance Empty (Ohms): 39
Resistance Full (Ohms): 250
Rheostat Range (Ohms): 39-250
Inlet Quantity: 1
Inlet Type: Quick Connect
Inlet Diameter (IN): 5/16
Outlet Quantity: 1
Outlet Type: Quick Connect
Outlet Diameter (IN): 3/8
Compatible Fuels: Gas
Wiring Harness Included: Yes
Hardware Included: Yes
Min Free Flow Rate (Gph): 51
Min Pressure Range (Psi): 80
Strainer Included: Yes
Pin Count: 4
Pin Shape: Flat
Connector Shape: Oval
Connector Gender: Male
Inline Pump: No
In Tank: Yes
Negative Ground: Yes
Pump Type: Turbine
Volts: 12 vDC
ISUZU 8251709010, 8251709011, 8971663510,
SPECTRA PREMIUM SP4025M
AIRTEX E8843M
CARTER P76568M
ISUZU NPR 1998-2004
ISUZU NPR-HD 1999-2003
