Fuel System
>
Electric Fuel Pump Assembly
>
NISSAN 170403LM0A, 170403LM0B, 170403LM0C, 170403LM0D, 250603LM0A, 250603LM0B Electric Fuel Pump Assembly

NISSAN 170403LM0A, 170403LM0B, 170403LM0C, 170403LM0D, 250603LM0A, 250603LM0B Electric Fuel Pump Assembly

NISSAN 170403LM0A, 170403LM0B, 170403LM0C, 170403LM0D, 250603LM0A, 250603LM0B Electric Fuel Pump Assembly

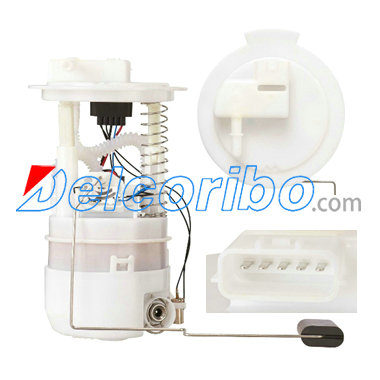

FPM1405 NISSAN Electric Fuel Pump Assembly
Description: Fuel Pump Module Assembly
Gaskets Included: Yes
Height (in): 9.4
Max Pressure Range (Psi): 54
Max Free Flow (Gph): 65
Resistance Empty (Ohms): 300
Resistance Full (Ohms): 50
Rheostat Range (Ohms): 300-50
Outlet Quantity: 1
Outlet Type: Quick Connect
Outlet Diameter (IN): 3/8
Compatible Fuels: Gas
Wiring Harness Included: No
Hardware Included: Yes
Min Free Flow Rate (Gph): 55
Min Pressure Range (Psi): 48
Strainer Included: Yes
Pin Count: 5
Pin Shape: Flat
Connector Shape: Rectangular
Connector Gender: Male
Inline Pump: No
In Tank: Yes
Negative Ground: Yes
Pump Type: Turbine
Volts: 12 vDC
NISSAN 170403LM0A, 17040 3LM0A, 170403LM0B, 17040 3LM0B, 170403LM0C, 17040 3LM0C, 170403LM0D, 17040 3LM0D, 19316255, 19316398, 19317807, 19317816, 19317901, 19318293, 250603LM0A, 250603LM0B,
SPECTRA PREMIUM SP4089M
DELPHI FG1988
NISSAN NV200 2013-2018
