NISSAN 170401KM0A, 17040-1KM0A, 170401KM0B, 17040-1KM0B, 250601KM0A, 25060-1KM0A Electric Fuel Pump Assembly

NISSAN 170401KM0A, 17040-1KM0A, 170401KM0B, 17040-1KM0B, 250601KM0A, 25060-1KM0A Electric Fuel Pump Assembly

NISSAN 170401KM0A, 17040-1KM0A, 170401KM0B, 17040-1KM0B, 250601KM0A, 25060-1KM0A Electric Fuel Pump Assembly

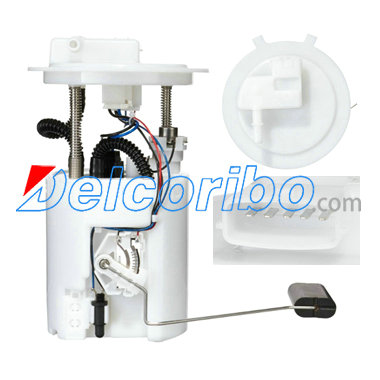

FPM1411 NISSAN Electric Fuel Pump Assembly
Description: Fuel Pump Module Assembly
Gaskets Included: Yes
Height (in): 9.0
Max Pressure Range (Psi): 75.4
Max Free Flow (Gph): 63.2
Resistance Empty (Ohms): 283
Resistance Full (Ohms): 50
Rheostat Range (Ohms): 283-50
Outlet Quantity: 1
Outlet Type: Quick Connect
Outlet Diameter (IN): 3/8
Compatible Fuels: Gas
Wiring Harness Included: No
Hardware Included: Yes
Min Free Flow Rate (Gph): 55
Min Pressure Range (Psi): 71
Strainer Included: Yes
Pin Count: 5
Pin Shape: Flat
Connector Shape: Rectangular
Connector Gender: Male
Inline Pump: No
In Tank: Yes
Negative Ground: Yes
Pump Type: Turbine
Volts: 12 vDC
NISSAN 170401KM0A, 17040 1KM0A, 170401KM0B, 17040 1KM0B, 250601KM0A,
SPECTRA PREMIUM SP4096M
DELPHI FG1597
AIRTEX E9127M
NISSAN JUKE 2011-2017
NISSAN SENTRA 2017-2019
