NISSAN 170403SG0A, 170403SG0C, 17040-3SG0C, 170403SG0D, 170403SG0E, 170403SG0F, 17040-3SG0F Electric Fuel Pump Assembly

NISSAN 170403SG0A, 170403SG0C, 17040-3SG0C, 170403SG0D, 170403SG0E, 170403SG0F, 17040-3SG0F Electric Fuel Pump Assembly

NISSAN 170403SG0A, 170403SG0C, 17040-3SG0C, 170403SG0D, 170403SG0E, 170403SG0F, 17040-3SG0F Electric Fuel Pump Assembly

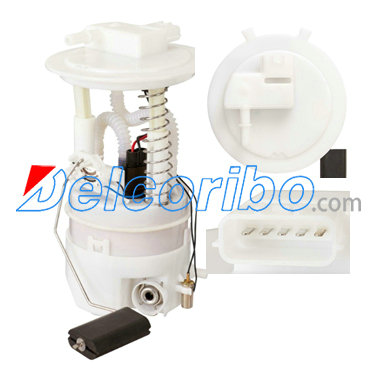

FPM1412 NISSAN Electric Fuel Pump Assembly
Description: Fuel Pump Module Assembly
Gaskets Included: Yes
Height (in): 9.5
Max Pressure Range (Psi): 53.65
Max Free Flow (Gph): 57
Resistance Empty (Ohms): 288
Resistance Full (Ohms): 50
Rheostat Range (Ohms): 288-50
Outlet Quantity: 1
Outlet Type: Quick Connect
Outlet Diameter (IN): 3/8
Compatible Fuels: Gas
Wiring Harness Included: No
Hardware Included: Yes
Min Free Flow Rate (Gph): 48
Min Pressure Range (Psi): 47.85
Strainer Included: Yes
Pin Count: 5
Pin Shape: Flat
Connector Shape: Rectangular
Connector Gender: Male
Inline Pump: No
In Tank: Yes
Negative Ground: Yes
Pump Type: Turbine
Volts: 12 vDC
NISSAN 170403SG0A, 17040 3SG0A, 170403SG0C, 17040 3SG0C, 170403SG0D, 17040 3SG0D, 170403SG0E, 17040 3SG0E, 170403SG0F, 17040 3SG0F,
SPECTRA PREMIUM SP4097M
DELPHI FG1549
AIRTEX E9213M
NISSAN SENTRA 2013-2018
