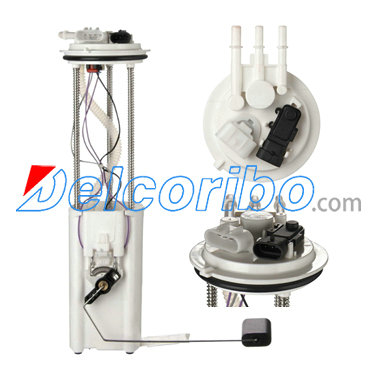

GM 19177238, 25178730, 25320521, 25344814, 8251787300, 19331267, 8191772380, 25167254 Electric Fuel Pump Assembly

Description Fuel Pump Module Assembly
Gaskets Included Yes
Height (in) 15.5
Max Pressure Range (Psi) 123.25
Max Free Flow (Gph) 58
Resistance Empty (Ohms) 39
Resistance Full (Ohms) 250
Rheostat Range (Ohms) 39-250
Inlet Quantity 1
Inlet Type Quick Connect
Inlet Diameter (IN) 5/16
Outlet Quantity 1
Outlet Type Quick Connect
Outlet Diameter (IN) 3/8
Compatible Fuels Gas
Wiring Harness Included Yes
Hardware Included Yes
Min Free Flow Rate (Gph) 48
Min Pressure Range (Psi) 79.75
Strainer Included Yes
Pin Count 4
Pin Shape Flat
Connector Shape Oval
Connector Gender Male
Inline Pump No
In Tank Yes
Negative Ground Yes
Pump Type Turbine
Volts 12 vDC

GM 19177238, 25178730, 25320521, 25344814, P446M, P569M, 8251787300, 19331267, 8191772380, 25167254, 25178730,

SPECTRA PREMIUM SP446M
BOSCH 67420
DELPHI FG0070
AIRTEX E3952M
DELPHI FG0070
BRUTE POWER 1010034,1010008

CHEVROLET S10 PICKUP 1997-2002
GMC SONOMA 1997-2002
ISUZU HOMBRE 1997-2000
