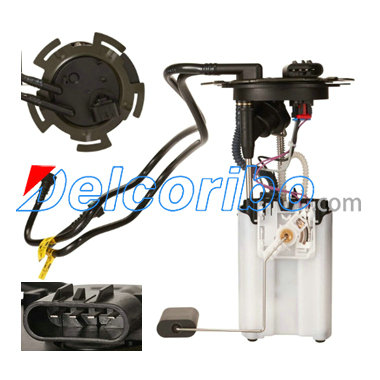

CHEVROLET 19206150, 19210873, 19256352, 19152752, 19167186, 19168892, 19168894 Electric Fuel Pump Assembly

Description: Fuel Pump Module Assembly
Gaskets Included: Yes
Height (in): 10.51
Max Pressure Range (Psi): 116
Max Free Flow (Gph): 58.79
Resistance Empty (Ohms): 250
Resistance Full (Ohms): 40
Rheostat Range (Ohms): 250-40
Inlet Quantity: 1
Inlet Type: Quick Connect
Inlet Diameter (IN): 5/16
Outlet Quantity: 1
Outlet Type: Quick Connect
Outlet Diameter (IN): 3/8
Compatible Fuels: Gas
Wiring Harness Included: No
Hardware Included: Yes
Min Free Flow Rate (Gph): 49.5
Min Pressure Range (Psi): 79.75
Strainer Included: Yes
Pin Count: 4
Pin Shape: Flat
Connector Shape: Oval
Connector Gender: Male
Inline Pump: No
In Tank: Yes
Negative Ground: Yes
Pump Type: Turbine
Volts: 12 vDC

19206150, 19210873, 19256352, 19152752, 19167186, 19168892, 19168894, 19257126, 19332411, 88967310, FG1305,

SPECTRA PREMIUM SP6098M
DELPHI FG0915
AIRTEX E3782M
CARTER P76680M
ACDELCO M10255

CHEVROLET COBALT 2009-2010
PONTIAC G5 2009-2010
