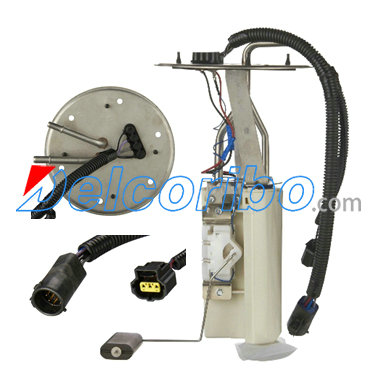

FORD F67Z9H307AA, F67Z-9H307-AA, F67Z9H307AC, F67Z-9H307-AC Electric Fuel Pump Assembly

Description: Fuel Pump And Sender Assembly
Gaskets Included: Yes
Height (in): 13.2
Max Pressure Range (Psi): 116
Max Free Flow (Gph): 21.1
Resistance Empty (Ohms): 15
Resistance Full (Ohms): 160
Rheostat Range (Ohms): 15-160
Inlet Quantity: 1
Inlet Type: Quick Connect
Inlet Diameter (IN): 5/16
Outlet Quantity: 1
Outlet Type: Quick Connect
Outlet Diameter (IN): 3/8
Compatible Fuels: Gas
Wiring Harness Included: No
Hardware Included: Yes
Min Free Flow Rate (Gph): 17.1
Min Pressure Range (Psi): 72.5
Strainer Included: Yes
Pin Count: 8
Pin Shape: Round
Connector Shape: Round
Connector Gender: Male
Inline Pump: No
In Tank: Yes
Negative Ground: Yes
Pump Type: Turbine
Volts: 12 vDC

FORD F67Z9H307AA, F67Z 9H307 AA, F67Z9H307AC, F67Z 9H307 AC,

SPECTRA PREMIUM SP6043H
DENSO 9533006
AIRTEX E2059MN

FORD EXPLORER 1996
