CHEVROLET 19177220, 19179591, 25176789, 25314067, 25320517, 25344818 Electric Fuel Pump Assembly

CHEVROLET 19177220, 19179591, 25176789, 25314067, 25320517, 25344818 Electric Fuel Pump Assembly

CHEVROLET 19177220, 19179591, 25176789, 25314067, 25320517, 25344818 Electric Fuel Pump Assembly

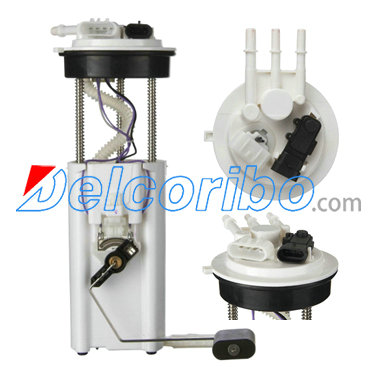

FPM1630 CHEVROLET Electric Fuel Pump Assembly
Description: Fuel Pump Module Assembly
Gaskets Included: Yes
Height (in): 11.9
Max Pressure Range (Psi): 123.25
Max Free Flow (Gph): 57.7
Resistance Empty (Ohms): 39
Resistance Full (Ohms): 250
Rheostat Range (Ohms): 39-250
Inlet Quantity: 1
Inlet Type: Quick Connect
Inlet Diameter (IN): 5/16
Outlet Quantity: 1
Outlet Type: Quick Connect
Outlet Diameter (IN): 3/8
Compatible Fuels: Gas
Wiring Harness Included: Yes
Hardware Included: Yes
Min Free Flow Rate (Gph): 48.6
Min Pressure Range (Psi): 79.75
Strainer Included: Yes
Pin Count: 4
Pin Shape: Flat
Connector Shape: Oval
Connector Gender: Male
Inline Pump: No
In Tank: Yes
Negative Ground: Yes
Pump Type: Turbine
Volts: 12 vDC
19177220, 19179591, 25176789, 25314067, 25320517, 25344818, P1551M, P1571M, P562M, 19331269, 19331274, 25314928, 25347147, 9535032, 19369951,
SPECTRA PREMIUM SP6085M
DENSO 9530021
BOSCH 67378
DELPHI FG0287
DELPHI FG0052
AIRTEX E3992M
BRUTE POWER 1010003
CARTER P74834M
ACDELCO MU1733
BOSCH F 00E 190 576 F00E190576
CHEVROLET BLAZER 1998-2005
GMC JIMMY 1998-2004
OLDSMOBILE BRAVADA 1998-2001
