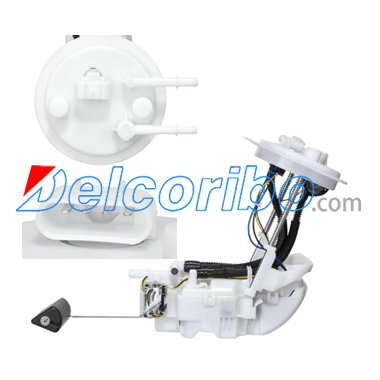

Description: Fuel Pump Module Assembly
Gaskets Included: Yes
Height (in): 10.1
Max Pressure Range (Psi): 60.9
Max Free Flow (Gph): 57.2
Resistance Empty (Ohms): 40
Resistance Full (Ohms): 250
Rheostat Range (Ohms): 40-250
Inlet Quantity: 1
Inlet Type: Quick Connect
Inlet Diameter (IN): 5/16
Outlet Quantity: 1
Outlet Type: Quick Connect
Outlet Diameter (IN): 3/8
Compatible Fuels: Gas
Wiring Harness Included: Yes
Hardware Included: Yes
Min Free Flow Rate (Gph): 47.9
Min Pressure Range (Psi): 55.1
Strainer Included: Yes
Pin Count: 4
Pin Shape: Flat
Connector Shape: Oval
Connector Gender: Male
Inline Pump: No
In Tank: Yes
Negative Ground: Yes
Pump Type: Turbine
Volts: 12 vDC
10388379, 19121652, 19149610, 19151143, 19168144, 19181827, 25721005, 25764719, 88967138, 19181826, 19206470, FG1215, MU1840,
SPECTRA PREMIUM SP6105M
DELPHI FG1938
DELPHI FG1939
AIRTEX E4010M
AIRTEX E3605M
ACDELCO M10201
CADILLAC SRX 2004-2009
