CHEVROLET 19177242, 25314335, 19177230, 19332100, 19332101, 25314337, 25314339 Electric Fuel Pump Assembly

CHEVROLET 19177242, 25314335, 19177230, 19332100, 19332101, 25314337, 25314339 Electric Fuel Pump Assembly

CHEVROLET 19177242, 25314335, 19177230, 19332100, 19332101, 25314337, 25314339 Electric Fuel Pump Assembly

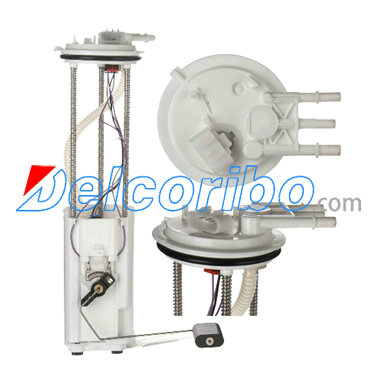

FPM1673 CHEVROLET Electric Fuel Pump Assembly
Description: Fuel Pump Module Assembly
Gaskets Included: Yes
Height (in): 16.3
Max Pressure Range (Psi): 130.5
Max Free Flow (Gph): 57.7
Resistance Empty (Ohms): 40
Resistance Full (Ohms): 250
Rheostat Range (Ohms): 40-250
Inlet Quantity: 1
Inlet Type: Quick Connect
Inlet Diameter (IN): 5/16
Outlet Quantity: 1
Outlet Type: Quick Connect
Outlet Diameter (IN): 3/8
Compatible Fuels: Gas
Wiring Harness Included: Yes
Hardware Included: Yes
Min Free Flow Rate (Gph): 48.6
Min Pressure Range (Psi): 72.5
Strainer Included: Yes
Pin Count: 4
Pin Shape: Flat
Connector Shape: Oval
Connector Gender: Male
Inline Pump: No
In Tank: Yes
Negative Ground: Yes
Pump Type: Turbine
Volts: 12 vDC
19177242, 25314335, P1514M, 19177230, 19332100, 19332101, 25314337, 25314339, 9535050, 25314024,
SPECTRA PREMIUM SP6153M
DENSO 9530037
DELPHI FG0094
AIRTEX E3956M, E3957M
ACDELCO MU1753
BOSCH 67360
BOSCH F 00E 190 540 F00E190540
CHEVROLET C3500 PICKUP 1998-2002
CHEVROLET K3500 PICKUP 1998-2000
GMC C3500 PICKUP 1998-2000
GMC K3500 1998-2000
