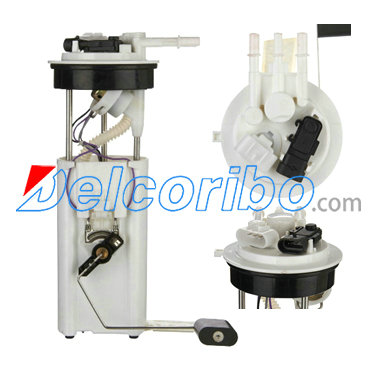

AIRTEX E3565M, PONTIAC 19180112, 25358348, 89060196 Electric Fuel Pump Assembly

AIRTEX E3565M, PONTIAC 19180112, 25358348, 89060196 Electric Fuel Pump Assembly

AIRTEX E3565M, PONTIAC 19180112, 25358348, 89060196 Electric Fuel Pump Assembly
FPM1712 PONTIAC Electric Fuel Pump Assembly
Description: Fuel Pump Module Assembly
Gaskets Included: Yes
Height (in): 12.0
Max Pressure Range (Psi): 116
Max Free Flow (Gph): 57.7
Resistance Empty (Ohms): 40
Resistance Full (Ohms): 250
Rheostat Range (Ohms): 40-250
Inlet Quantity: 1
Inlet Type: Quick Connect
Inlet Diameter (IN): 3/8
Outlet Quantity: 1
Outlet Type: Quick Connect
Outlet Diameter (IN): 3/8
Compatible Fuels: Gas
Wiring Harness Included: Yes
Hardware Included: Yes
Min Free Flow Rate (Gph): 48.6
Min Pressure Range (Psi): 94
Strainer Included: Yes
Pin Count: 4
Pin Shape: Flat
Connector Shape: Oval
Connector Gender: Male
Inline Pump: No
In Tank: Yes
Negative Ground: Yes
Pump Type: Turbine
Volts: 12 vDC
19180112, 25358348, 89060196,
SPECTRA PREMIUM SP6609M
DELPHI FG1003
AIRTEX E3565M
CARTER P76136M
ACDELCO MU1906
BOSCH F 00E 192 555 F00E192555
PONTIAC GRAND PRIX 2004
