Fuel System
>
Electric Fuel Pump Assembly
>
ACDELCO 19180102, 19332088, 25348610, 19369923 Electric Fuel Pump Assembly

ACDELCO 19180102, 19332088, 25348610, 19369923 Electric Fuel Pump Assembly

ACDELCO 19180102, 19332088, 25348610, 19369923 Electric Fuel Pump Assembly

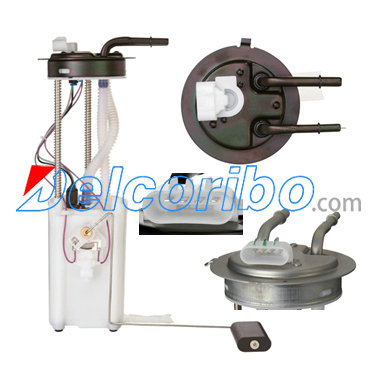

FPM1720 HUMMER Electric Fuel Pump Assembly
Description: Fuel Pump Module Assembly
Gaskets Included: Yes
Height (in): 13.6
Max Pressure Range (Psi): 123
Max Free Flow (Gph): 58.8
Resistance Empty (Ohms): 39
Resistance Full (Ohms): 250
Rheostat Range (Ohms): 39-250
Inlet Quantity: 1
Inlet Type: Quick Connect
Inlet Diameter (IN): 5/16
Outlet Quantity: 1
Outlet Type: Quick Connect
Outlet Diameter (IN): 3/8
Compatible Fuels: Gas
Wiring Harness Included: Yes
Hardware Included: Yes
Min Free Flow Rate (Gph): 49.5
Min Pressure Range (Psi): 79.8
Strainer Included: Yes
Pin Count: 4
Pin Shape: Flat
Connector Shape: Oval
Connector Gender: Male
Inline Pump: No
In Tank: Yes
Negative Ground: Yes
Pump Type: Turbine
Volts: 12 vDC
19180102, 19332088, 25348610, 19369923,
SPECTRA PREMIUM SP6617M
DENSO 9535117
DELPHI FG0331
CARTER P76488M
ACDELCO MU1737
AIRTEX E3558M
HUMMER H2 2003
