Fuel System
>
Electric Fuel Pump Assembly
>
AIRTEX E4056M, CHEVROLET 13507609, 13577817, 13592112, 13504910, 13507610, 13592120 Electric Fuel Pump Assembly

AIRTEX E4056M, CHEVROLET 13507609, 13577817, 13592112, 13504910, 13507610, 13592120 Electric Fuel Pump Assembly

AIRTEX E4056M, CHEVROLET 13507609, 13577817, 13592112, 13504910, 13507610, 13592120 Electric Fuel Pump Assembly

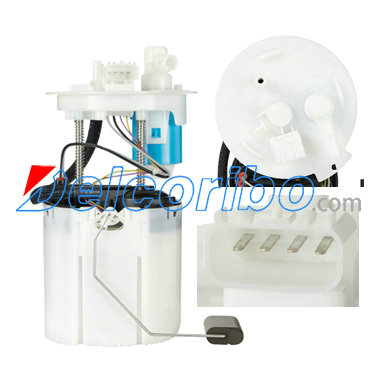

FPM1774 CHEVROLET Electric Fuel Pump Assembly
Description: Fuel Pump Module Assembly
Gaskets Included: Yes
Height (in): 10.5
Max Pressure Range (Psi): 87
Max Free Flow (Gph): 66
Resistance Empty (Ohms): 250
Resistance Full (Ohms): 40
Rheostat Range (Ohms): 250-40
Outlet Quantity: 1
Outlet Type: Quick Connect
Outlet Diameter (IN): 3/8
Compatible Fuels: Flex / Gas
Wiring Harness Included: No
Hardware Included: Yes
Min Free Flow Rate (Gph): 57
Min Pressure Range (Psi): 81
Strainer Included: Yes
Pin Count: 4
Pin Shape: Flat
Connector Shape: Rectangular
Connector Gender: Male
Inline Pump: No
In Tank: Yes
Negative Ground: Yes
Pump Type: Turbine
Volts: 12 vDC
CHEVROLET 13507609, 13577817, 13592112, 13504910, 13507610, 13592120,
SPECTRA PREMIUM SP6704M
DELPHI FG1741
AIRTEX E4056M
ACDELCO M100056
CHEVROLET SONIC 2012-2018
