AIRTEX E3788M, CHEVROLET 25835399 Electric Fuel Pump Assembly

AIRTEX E3788M, CHEVROLET 25835399 Electric Fuel Pump Assembly

AIRTEX E3788M, CHEVROLET 25835399 Electric Fuel Pump Assembly

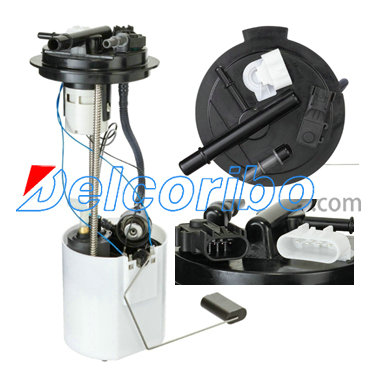

FPM1781 CHEVROLET Electric Fuel Pump Assembly
Description: Fuel Pump Module Assembly
Gaskets Included: Yes
Height (in): 14.72
Max Pressure Range (Psi): 90
Max Free Flow (Gph): 85
Resistance Empty (Ohms): 253
Resistance Full (Ohms): 42
Rheostat Range (Ohms): 253-42
Outlet Quantity: 1
Outlet Type: Quick Connect
Outlet Diameter (IN): 3/8
Compatible Fuels: Flex
Wiring Harness Included: No
Hardware Included: Yes
Min Free Flow Rate (Gph): 75
Min Pressure Range (Psi): 80
Strainer Included: Yes
Pin Count: 4
Pin Shape: Flat
Connector Shape: Rectangular
Connector Gender: Male
Inline Pump: No
In Tank: Yes
Negative Ground: Yes
Pump Type: Turbine
Volts: 12 vDC
25835399,
SPECTRA PREMIUM SP6717M
AIRTEX E3788M
ACDELCO M10241
CHEVROLET EXPRESS 1500 2009
GMC SAVANA 1500 2009
