CHRYSLER 68021930AA, 68021930AB, 68021930AC Electric Fuel Pump Assembly

CHRYSLER 68021930AA, 68021930AB, 68021930AC Electric Fuel Pump Assembly

CHRYSLER 68021930AA, 68021930AB, 68021930AC Electric Fuel Pump Assembly

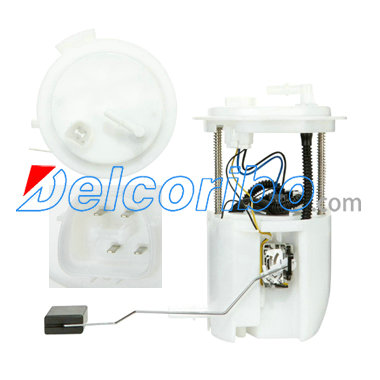

FPM1936 CHRYSLER Electric Fuel Pump Assembly
Description: Fuel Pump Module Assembly
Gaskets Included: Yes
Height (in): 9.52
Max Pressure Range (Psi): 64
Max Free Flow (Gph): 57
Resistance Empty (Ohms): 120
Resistance Full (Ohms): 13
Rheostat Range (Ohms): 120-13
Outlet Quantity: 1
Outlet Type: Quick Connect
Outlet Diameter (IN): 3/8
Compatible Fuels: Gas
Wiring Harness Included: No
Hardware Included: Yes
Min Free Flow Rate (Gph): 47
Min Pressure Range (Psi): 58
Strainer Included: Yes
Pin Count: 4
Pin Shape: Flat
Connector Shape: Trapeze
Connector Gender: Male
Inline Pump: No
In Tank: Yes
Negative Ground: Yes
Pump Type: Turbine
Volts: 12 vDC
68021930AA, 68021930AB, 68021930AC,
SPECTRA PREMIUM SP7230M
DELPHI FG1192
CHRYSLER SEBRING 2008
DODGE AVENGER 2008
