HONDA 17045SJCA00, 17045SJCA01, 17047SJCA00 Electric Fuel Pump Assembly

HONDA 17045SJCA00, 17045SJCA01, 17047SJCA00 Electric Fuel Pump Assembly

HONDA 17045SJCA00, 17045SJCA01, 17047SJCA00 Electric Fuel Pump Assembly

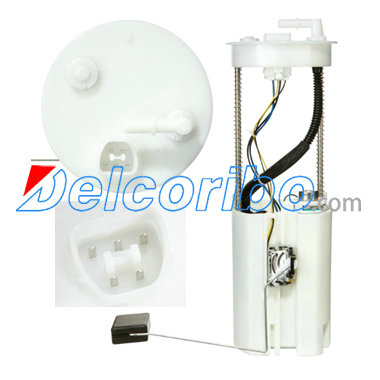

FPM1969 HONDA Electric Fuel Pump Assembly
Description: Fuel Pump Module Assembly
Gaskets Included: Yes
Height (in): 13
Max Pressure Range (Psi): 62.3
Max Free Flow (Gph): 60
Resistance Empty (Ohms): 780
Resistance Full (Ohms): 20
Rheostat Range (Ohms): 780-20
Outlet Quantity: 1
Outlet Type: Quick Connect
Outlet Diameter (IN): 3/8
Compatible Fuels: Gas
Wiring Harness Included: No
Hardware Included: Yes
Min Free Flow Rate (Gph): 51
Min Pressure Range (Psi): 56.5
Strainer Included: Yes
Pin Count: 4
Pin Shape: Flat
Connector Shape: Trapeze
Connector Gender: Male
Inline Pump: No
In Tank: Yes
Negative Ground: Yes
Pump Type: Turbine
Volts: 12 vDC
17045SJCA00, 17045SJCA01, 17047SJCA00,
SPECTRA PREMIUM SP8039M
DELPHI FG0959
AIRTEX E8717M
CARTER P76410M
HONDA RIDGELINE 2006-2014
