DELPHI FG1546, HONDA 17045TR0L31, 17045TR0L32 Electric Fuel Pump Assembly

DELPHI FG1546, HONDA 17045TR0L31, 17045TR0L32 Electric Fuel Pump Assembly

DELPHI FG1546, HONDA 17045TR0L31, 17045TR0L32 Electric Fuel Pump Assembly

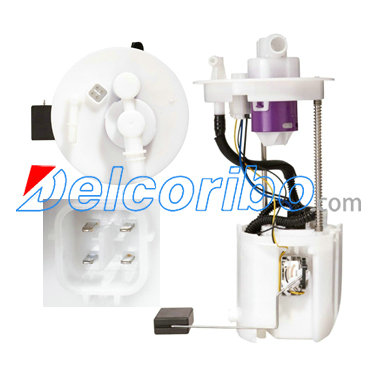

FPM2019 HONDA Electric Fuel Pump Assembly
Description: Fuel Pump Module Assembly
Gaskets Included: Yes
Height (in): 11
Max Pressure Range (Psi): 65
Max Free Flow (Gph): 60
Resistance Empty (Ohms): 780
Resistance Full (Ohms): 20
Rheostat Range (Ohms): 780-20
Outlet Quantity: 1
Outlet Type: Quick Connect
Outlet Diameter (IN): 3/8
Compatible Fuels: Gas
Wiring Harness Included: No
Hardware Included: Yes
Min Free Flow Rate (Gph): 50
Min Pressure Range (Psi): 55
Strainer Included: Yes
Pin Count: 4
Pin Shape: Flat
Connector Shape: Square
Connector Gender: Male
Inline Pump: No
In Tank: Yes
Negative Ground: Yes
Pump Type: Turbine
Volts: 12 vDC
17045TR0L31, 17045TR0L32,
SPECTRA PREMIUM SP8965M
DELPHI FG1546
CARTER P76766M
HONDA CIVIC 2012-2015
