TOYOTA 7702008050, 77020-08050, 7702008060, 77020-08060 Electric Fuel Pump Assembly

TOYOTA 7702008050, 77020-08050, 7702008060, 77020-08060 Electric Fuel Pump Assembly

TOYOTA 7702008050, 77020-08050, 7702008060, 77020-08060 Electric Fuel Pump Assembly

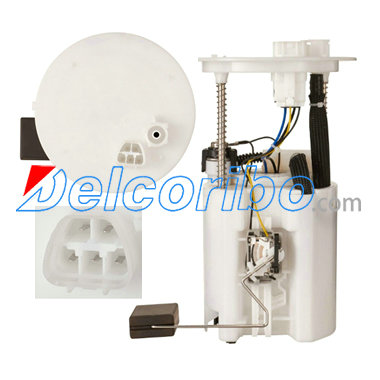

FPM2038 TOYOTA Electric Fuel Pump Assembly
Description: Fuel Pump Module Assembly
Gaskets Included: Yes
Height (in): 9.82
Max Pressure Range (Psi): 60
Max Free Flow (Gph): 61.88
Resistance Empty (Ohms): 410
Resistance Full (Ohms): 15
Rheostat Range (Ohms): 410-15
Outlet Quantity: 1
Outlet Type: Push In
Outlet Diameter (IN): 5/16
Compatible Fuels: Gas
Wiring Harness Included: No
Hardware Included: Yes
Min Free Flow Rate (Gph): 52.6
Min Pressure Range (Psi): 55
Strainer Included: Yes
Pin Count: 4
Pin Shape: Flat
Connector Shape: Trapeze
Connector Gender: Male
Inline Pump: No
In Tank: Yes
Negative Ground: Yes
Pump Type: Turbine
Volts: 12 vDC
7702008050, 7702008060,
SPECTRA PREMIUM SP9023M
DELPHI FG0920
DELPHI FG1274
AIRTEX E9015M
CARTER P76777M
TOYOTA SIENNA 2011-2016
