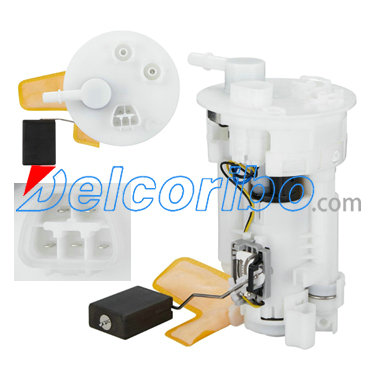

PONTIAC 232170D030, 2321903010, 232210A030, 232490A020, 2328022010, 233000A020 Electric Fuel Pump Assembly

Description: Fuel Pump Module Assembly
Gaskets Included: Yes
Height (in): 7.6
Max Pressure Range (Psi): 55
Max Free Flow (Gph): 44.9
Resistance Empty (Ohms): 107
Resistance Full (Ohms): 4
Rheostat Range (Ohms): 107-4
Inlet Quantity: 1
Inlet Type: Push In
Inlet Diameter (IN): 5/16
Outlet Quantity: 1
Outlet Type: Push In
Outlet Diameter (IN): 5/16
Compatible Fuels: Gas
Wiring Harness Included: No
Hardware Included: Yes
Min Free Flow Rate (Gph): 35.6
Min Pressure Range (Psi): 44
Strainer Included: Yes
Pin Count: 5
Pin Shape: Flat
Connector Shape: Trapeze
Connector Gender: Male
Inline Pump: No
In Tank: Yes
Negative Ground: Yes
Pump Type: Turbine
Volts: 12 vDC

232170D030, 2321903010, 232210A030, 232490A020, 2328022010, 233000A020, 7702402020, 7716933020, 7717502010, 7724102010, 7778506020, 8332002050, 9015950343, 90159A0022,

SPECTRA PREMIUM SP9164M
DELPHI FG0938

PONTIAC VIBE 2003-2004
TOYOTA COROLLA 2003-2004
TOYOTA MATRIX 2003-2004
